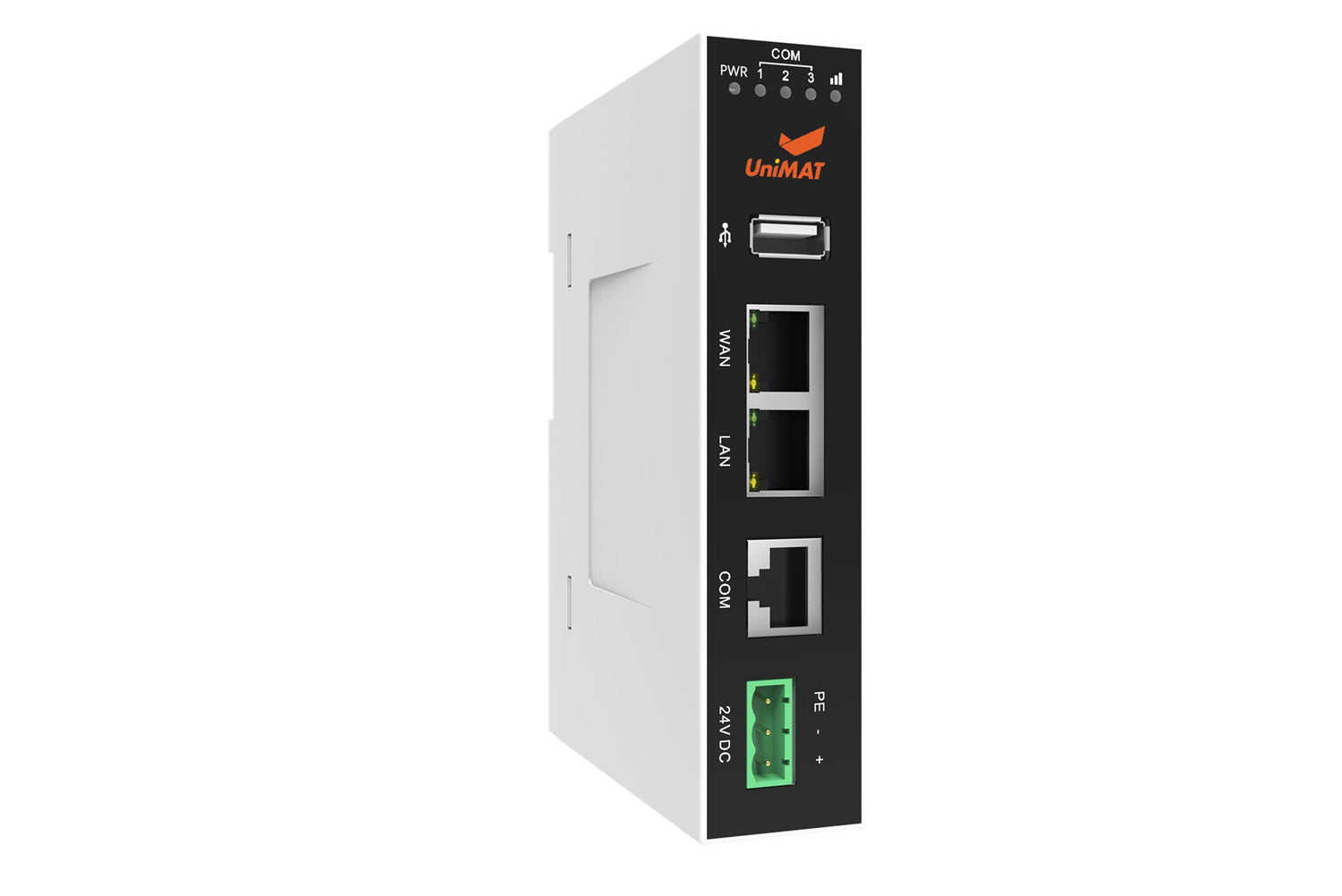

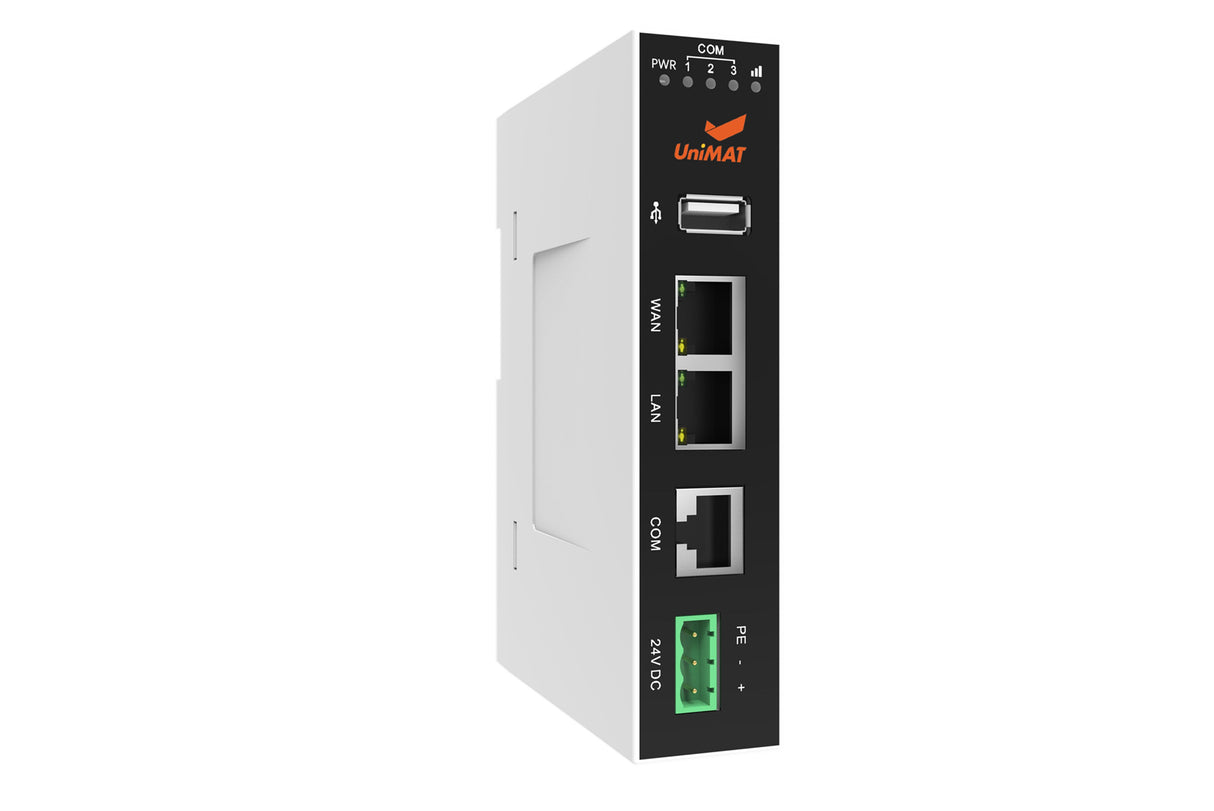

UBox
| CPU | A8 600MHz 32bit |
|---|---|
| Memory | 256M FLASH+128M DDR3 |
| Real clock | Support |
| USB HOST | USB 2.0×1 Type A |
| Series por | RJ45，COM1: RS485 COM2:RS485/RS232 |
| Ethernet | 10/100M self-adaption |
| Electrical specification | |
| Rated power | 7.2W |
| Rated Voltage | DC24V |
| Input range | 10~28.8V DC |
| Allowable power loss | 10ms |
| Voltage resistance | 500VAC 1min |
| Structural specification | |
| Housing color | Black+ white |
| Housing material | ABS+ PC plastic，metal |
| Outer size | 130×95×30mm |
| Weight | 175g |
| Environmental specifications | 175g |
| working temperature | 0~50℃ |
| Working humidity | 10~90%RH（non-condensing） |
| Storage temperature | -20~60℃ |
| Storage humidity | 10~90%RH（non-condensing） |
| Seismic performance | 10~25Hz（X、Y、Z direction 2G/20 min） |
| Cooling mode | Natural Air Cooling |
| Product certification | |
| panel protection level | IP20 |
| CE certification | Compliance with CE Certification |
