X-24RA-E0

Model No.

X-24RA-E0

Order No.

X-24RA-E0

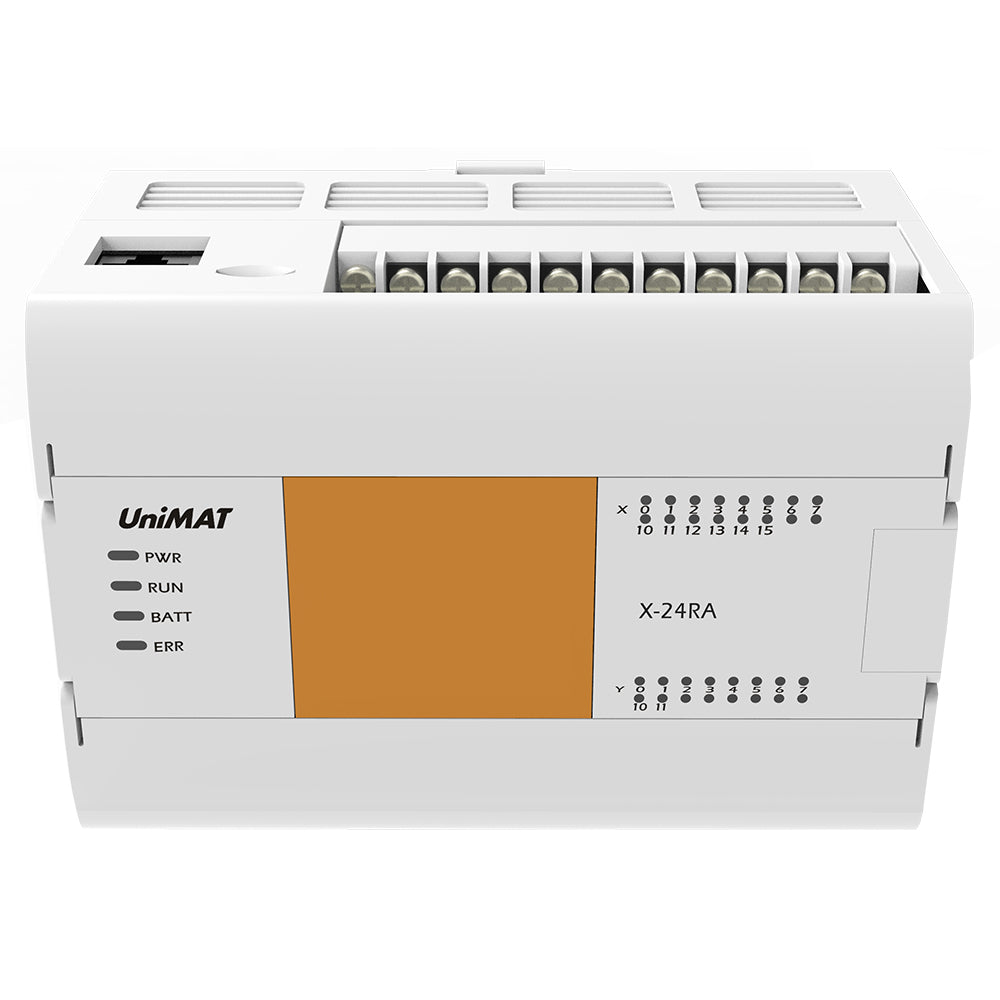

  Side View


  technical parameters


Model No.

X-24RA-E0

Power supply

Working voltage(Vac)

Min

AC 100V

Typical

AC 220V

Max

AC 240V

Limited Input Voltage

AC 85V~AC100V, AC   240V~AC264V

Input Current

60/30mA(CPU,120/240VAC)

Surge Current

20A,264V AC时

Fuse

2A 60V Slowly melting

24V power supply(Max)

300mA

Digital input

Build in input

14   points fixed

Input type

PNP/NPN

Rated Voltage

24VDC,high   speed 6.4mA(X0~X5),common 4mA(X6~X27)

Maximum continuous   permissible voltage

30V DC

Surge voltage

35VDC,0.5   second

Logic 1[minimum]

15VDC,High speed 3.7mA(X0~X5),common 2.5mA(X6~X27)

Logic 0[Max]

5VDC,1mA

lowable leakage current   [maximum]

1mA

Isolution

yes

Photoelectric isolation

500VAC 1 min

High speed counter input rate

Single-phase 200KHz[3]; AB phase   100KHz[3], supporting 4 times counting

Digital output characteristics

Build in output

10 relay output

Output type

dry contact

Rated Voltage

220VAC/24VDC

Voltage range

5~30VDC

5~250VAC

Surge Current(Max)

5A 4s 10% Duty ratio

Rated current per point   (Max)

2A

Lamp load [maximum]

30W DC/200W AC

Response time (24V, 2K   load)

10ms

Turn on resistance [contact]

0.2Ω(New   maximum)

Pulse frequency[Max]

1Hz

  Size diagram (mm)


  Wiring diagram
