Model No.
X3-60TD-E0
X3-60TD-E0
Order No.
X3-60TD-E0

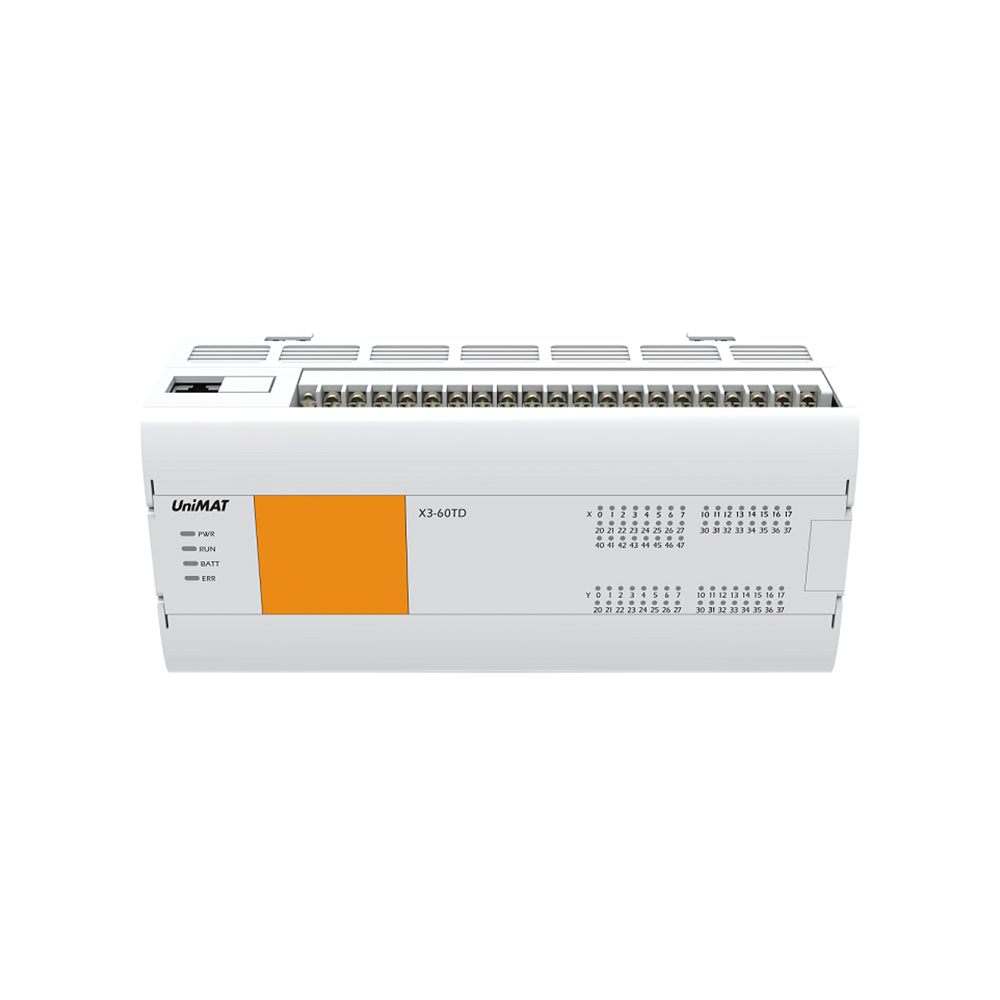

Side View
technical parameters
Voltage |
DC24V |
|||
Voltage range |
DC 20.4~28.8V |
|||
Allowed voltage |
continue to operate for the instantaneous power failure less than 5ms |
|||
Fuse |
60V 2A |
|||
Surge Current |
12A,0.5ms below/28.8V DC |
|||
Power consumption |
32W |
|||
DC24V power supply |
300mA below |
|||
DC5V internal power supply |
800mA below |
|||
Input specifications |
||||
Input |
36 |
|||
Connection method |
Detachable terminal block (M3 screw) |
|||
Input method |
NPN/PNP |
|||
High speed counter |
Single phase 200Khz(8PCS) AB phase 100Hz(4PCS) |
|||
Input signal voltage |
DC power supply type: dc20.4v ~ 28.8v |
|||
Input impedance |
X0-X5 |
3.3K |
||
X6-X7 |
3.3K |
|||
X10 above |
5.6K |
|||
ONInput induced current |
X0-X5 |
More than 5mA |
||
X6-X7 |
More than 5mA |
|||
X10 above |
More than 4mA |
|||
OFF Input induced current |
1mA below |
|||
Input response time |
No more than 4.5ms |
|||
Input signal form |
Voltage free contact input |
|||
Drain input: NPN open collector transistor |
||||
Source type input:PNP,Open collector transistor |
||||
Input circuit isolation |
Optocoupler isolation |
|||
Display of input |
When the optocoupler is driven, the LED light on the panel is on |
|||
Output specifications |
||||
Output |
24 |
|||
Max frenquency |
Singal end 6 Axis 200K |
|||
Connection method |
Detachable terminal block (M3 screw) |
|||
Output method |
NPN/PNP |
|||
External Power supply |
DC5~30V |
|||
Max load |
Resistive load |
0.5A/single point; |
||
inductive load |
12W/DC24V |
|||
Light load |
High speed:2W/DC24V、common:5W/DC24V |
|||
Min Load |
5mA(DC5~24V) |
|||
Open circuit leakage current |
0.1mA below /DC30V |
|||
Turn on resistance |
High speed point 0.3Ω typical(Max0.6Ω) |
|||
response time |
OFF→ON |
High spend:5μs below/10mA above(DC5~24V) |
||
Ordinary :0.2ms below/200mA above (DC24V) |
||||
ON→OFF |
High spend:5μs below/10mA above(DC5~24V) |
|||
Ordinary:0.2ms below/200mA above(DC24V) |
||||
Loop isolation |
Optocoupler isolation |
|||
Display of output action |
When the optocoupler is driven, the LED light on the panel is on |
|||
Shield transmission distance |
500M(ordinary output) |
|||
Unshielded transmission distance |
150M(ordinary output) |
Size diagram (mm)
Wiring diagram
