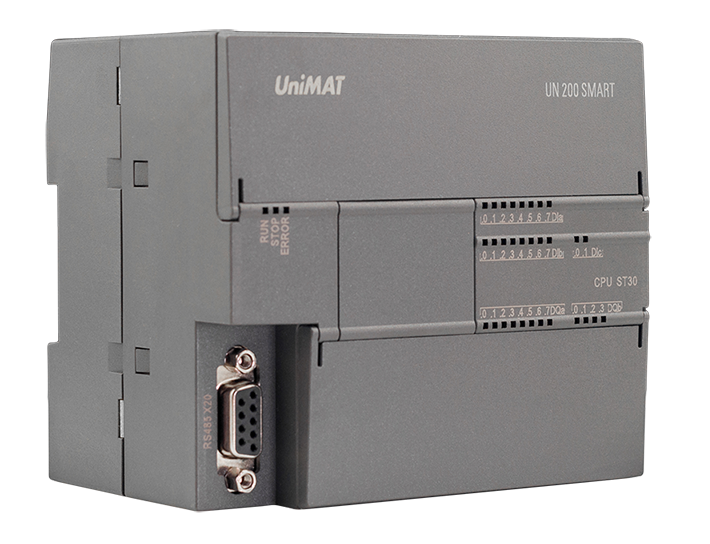

CPU ST30E
$0.00
Precio unitario
/
Agotado
20 años de experiencia
Garantía de 3 años
Admite prueba de muestra gratuita
| Part No. | UN 288-1ST30E-0AB0 |
|---|---|
| Dimension(w*H*D)mm | 110*100*81 |
| Current suppIy | Max.300mA |
| DI current consumer(24VDC) | 4mA input of each using point |
| CPU Characters | |
| User Memory | 24KB programming memory/12KB data memory/Max. 10KB retentive memory |
| LocaI digitaI I/O | 18DI/12DO |
| ModuIe expansion | Max. 6 |
| Communication Board | Max.1 |
| High speed pulse | Single phase : 4*60KHz AB phase: 1*30KHz |
| Ports | Ethernet:1 Com port:2 total (RS485) Port 2: not support PPI： support Unimat MODBUS RTU Expanding port: RS232 or RS485 SB card*1 (Port 1) |
| Programming device | Com port: 1 connection, Ethernet port : 1 connection |
| CPU(PUT/GET) | Ethernet：（Total 8）can automatically configurable for 7 |
| Power | |
| Power input VoItage range | 20.4~28.8VDC |
| Power output VoItage range | 20.4~28.8VDC |
| Rated output current (Max.) | 300mA |
| DigitaI input | |
| Input points | 18 |
| Type | NPN/PNP |
| Rated voItage | 3.9mA rated 24VDC |
| AIIowed continue voItage | Max.30VDC |
| Logic 1 signaI (Min.) | 15VDC at 2.4mA |
| Logic 0 signaI (Max.) | 5VDC at 1mA |
| FiItering time | 0，6.4，12.8ms |
| DigitaI output | |
| output points | 12 |
| Type | SoIidity-MoSFET(PNP) |
| VoItage range | 20.4~28.8VDC |
| Rated current(Max.) per point | 0.75A |

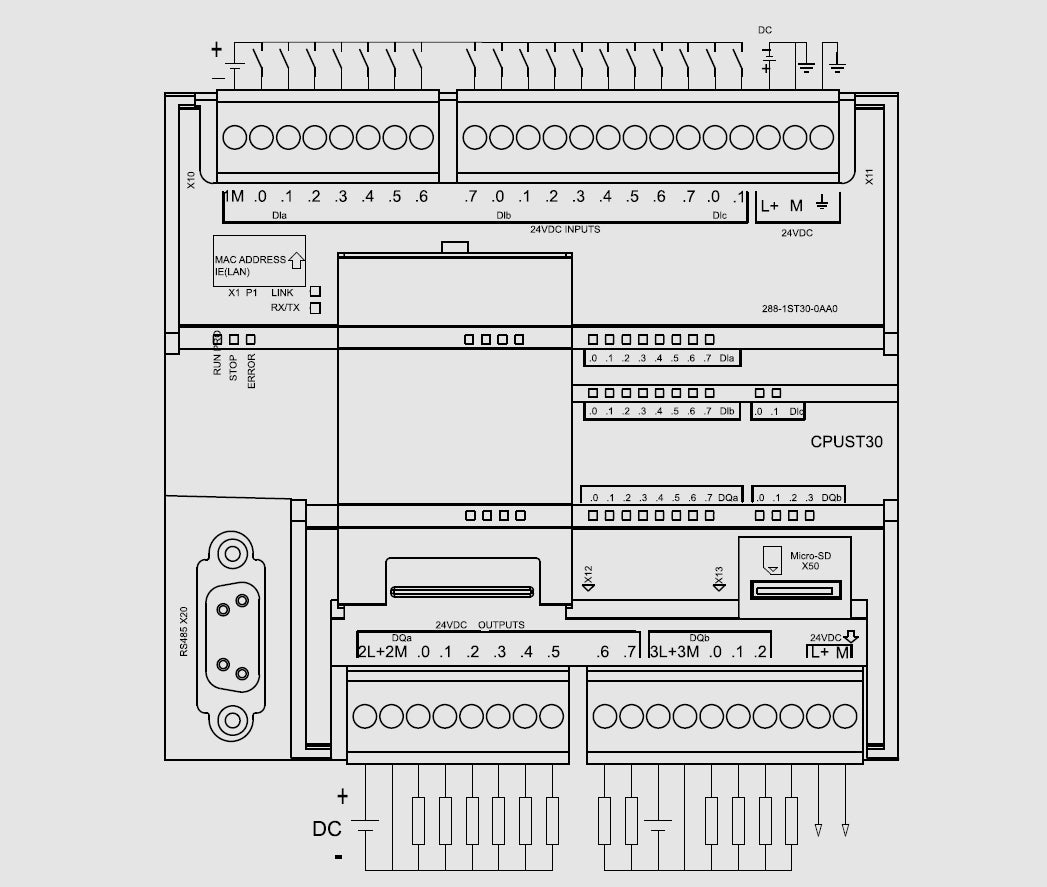

CPU ST30E

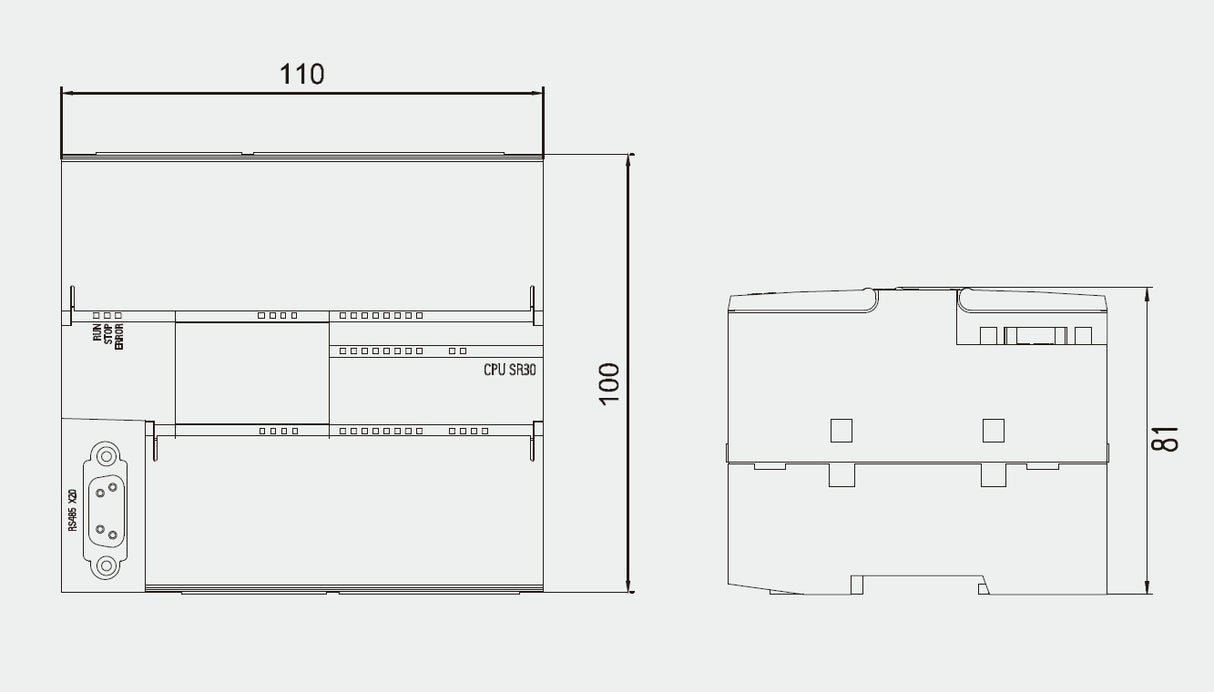

CPU ST30E Dimensional Drawing
