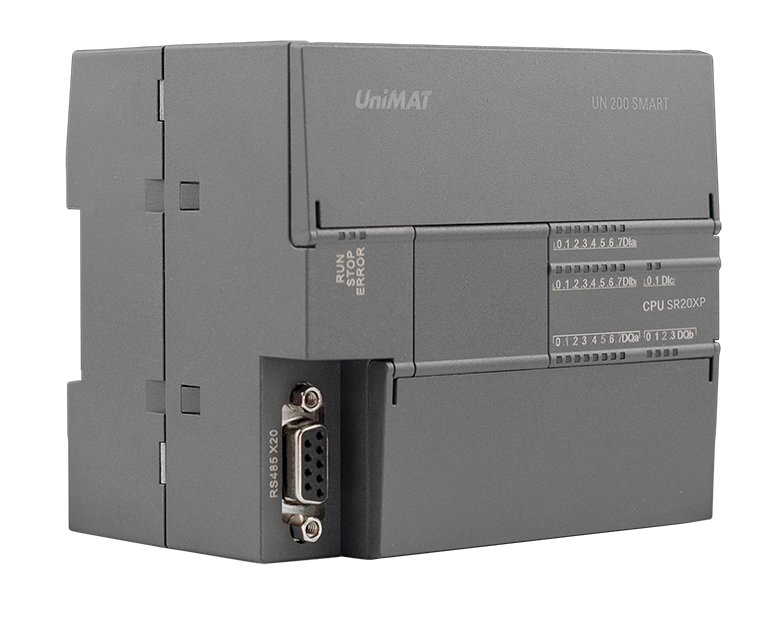

CPU SR20XPE
$0.00
Precio unitario
/
Agotado
| Part No. | UN 288-1SR20E-XPB0 |
|---|---|
| Dimension(W*H*D)mm | 110*100*81 |
| Current suppIy(24VDC) | Max.300mA |
| DigitaI input current consumer(24VDC) | 4mA input of each using point |
| CPU Characters | |
| User Memory | 24KB programming memory/8KB data memory/10KB retentive memory |
| LocaI digitaI I/o | 12DI/8DO |
| ModuIe expansion | Max. 6 |
| Communication Board | Max.1 |
| High speed counter | SingIe phase : 4*60KHz Orthogonal phase: 1*30KHz |
| Communication | |
| Ports | Ethernet: 1 port for PG communication, 11 ports shared by OUC, PUT/GET, and HMI. Serial Ports: 2 (RS485), Port 2 does not support PPI. Expansion Port: 1 optional RS485 SB card (Port 1). |
| Programming device | Com port: 1 connection, Ethernet port : 1 connection |
| CPU(PUT/GET) | Ethernet：（Total 8） can automatically configurable for 7 |
| Power | |
| Power input VoItage range | 85~264VAC |
| Power output VoItage range | 20.4~28.8VDC |
| Rated output current (Max.) | 300mA |
| DigitaI input | |
| Input points | 12 |
| Type | NPN/PNP |
| Rated voItage | 3.9mA at 24VDC (5V are not support) |
| AIIowed continue voItage | Max.30VDC |
| Logic 1 signaI (Min.) | 15VDC at 2.4mA |
| Logic 0 signaI (Max.) | 5VDC at 1mA |
| FiItering time | 0,6.4ms and 12.8ms |
| DigitaI output | |
| output points | 8 |
| Type | ReIay dry contact |
| VoItage range | 5~30VDC or 5~250VAC |
| Rated current(Max.) per point | 2.0A |
| Analog input and out put | 4 phase input/2 phase output |
| local analog input/output address | AIW0-AIW6 AQW0-AQW2 |

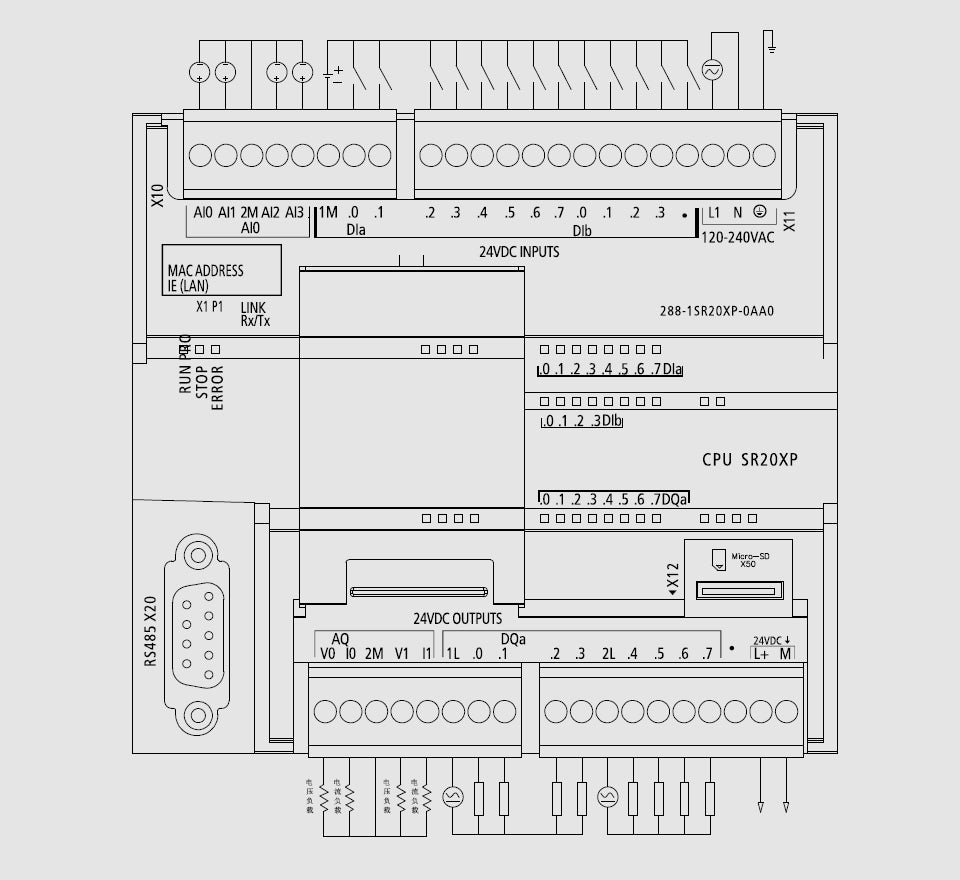

CPU SR20XPE Wiring Diagram
CPU SR20XPE Dimensional Drawing
