10 "1024 x 600 TFT LCD, LED backlit."
Serial port support RS485/RS232
RS485 supports terminal connection mode, built-in terminal resistance, convenient long-distance communication
Front panel IP65 protection level

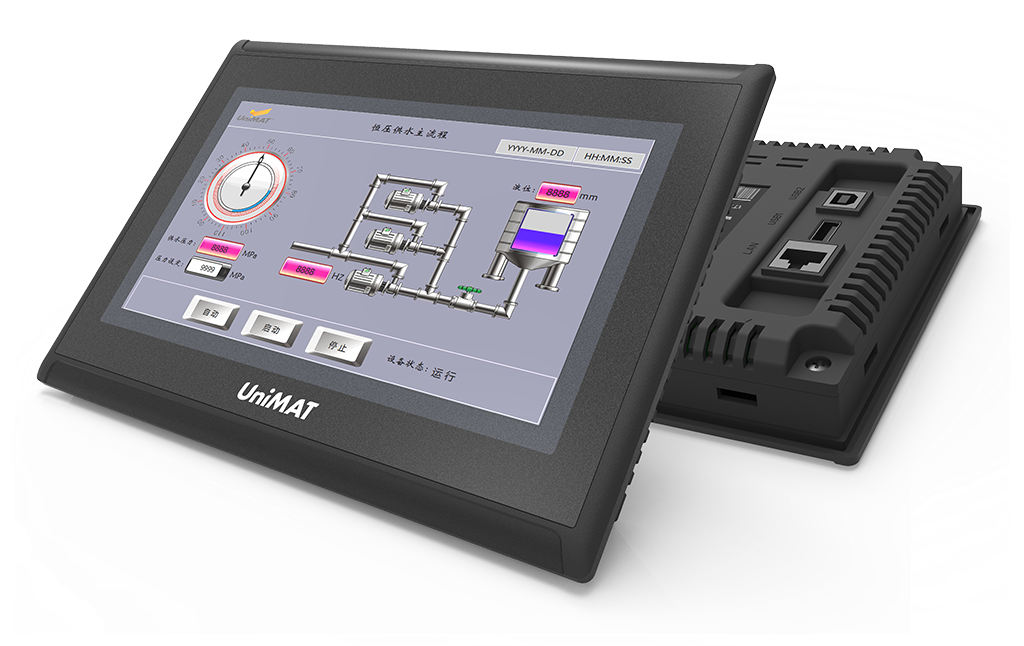

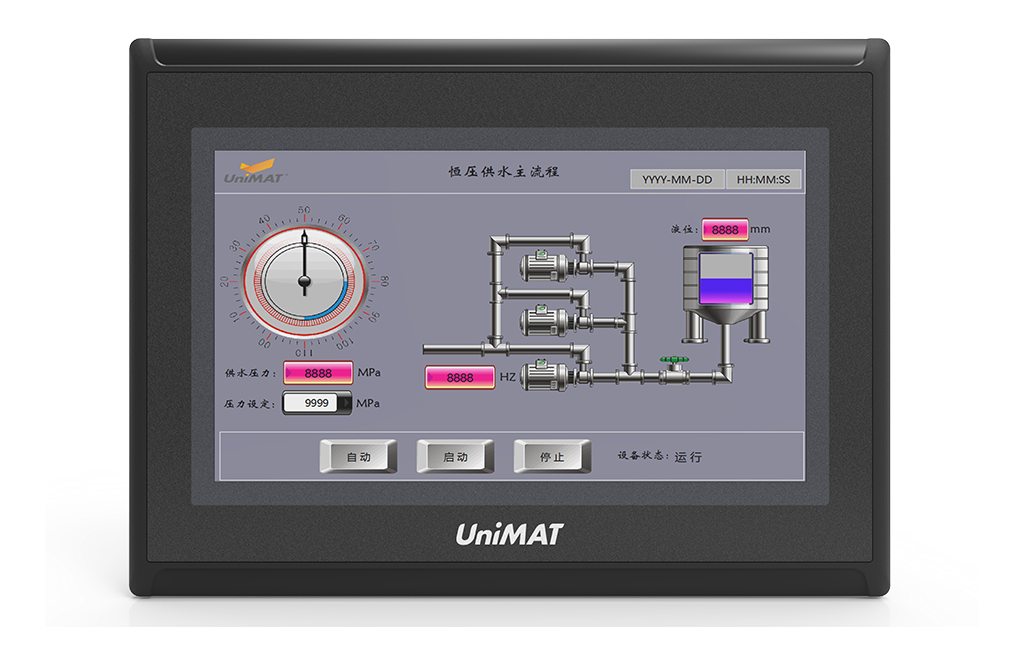

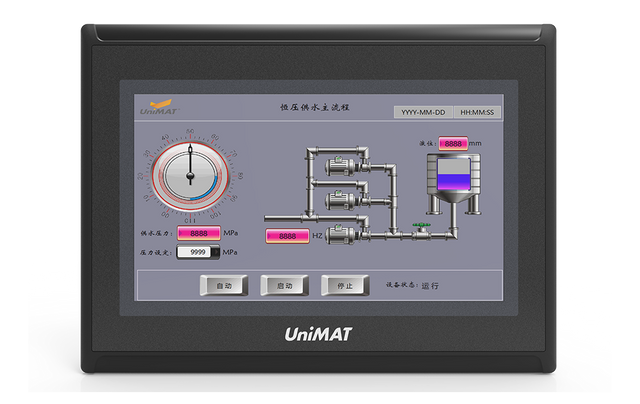

UH310E
Model No.
UH310E
Order No.
UH310-2EU01-0AA0

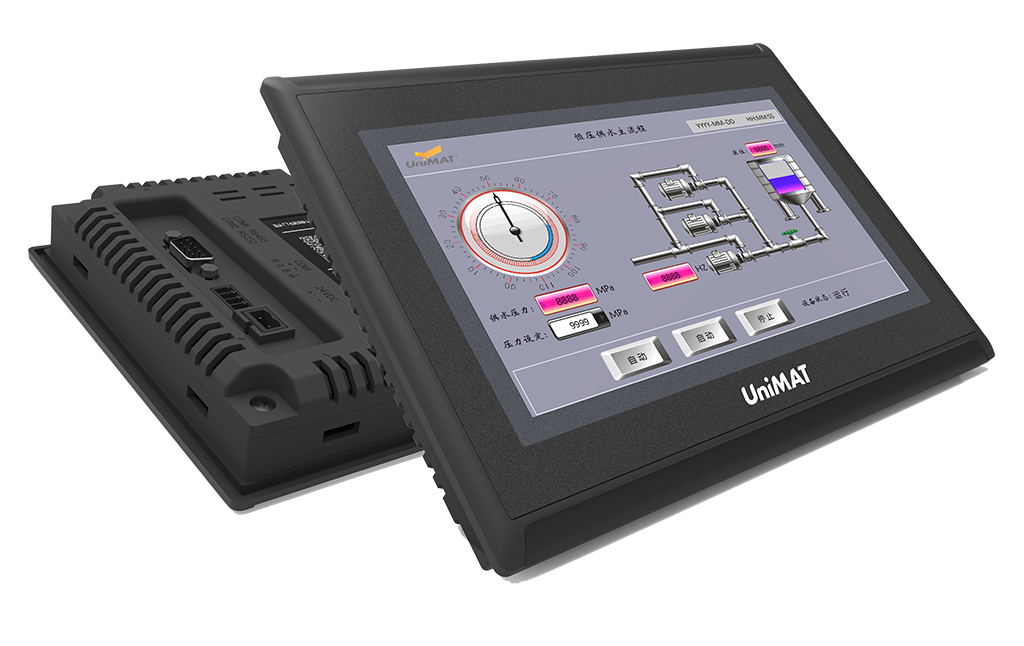

Side View
technical parameters
| Display size |
10 .1”TFT |
|
Display color |
65536 |
|
Resolution |
1024*600 |
|
backlight |
LED |
|
brightness |
200cd/㎡ |
|
Screen type |
4 wire high precision resistance net work |
|
Memory |
128M Flash+64M DRAM |
|
Real time |
yes |
|
USB Host |
USB2.0*1 |
|
USB Slave |
USB2.0*1 |
|
Series port |
COM1：RS485 COM2：RS232 |
|
Ethernet port |
10M/100M self-adaption |
|
Rated Voltage |
DC24V |
|
Dimension |
273*193mm |
|
Hole size |
261*180mm |
|
IP grade |
IP65 |
Installation size
Structure diagram
