X-1AI/1RTD-BD

X series PLC supports BD board expansion function, supports up to 2 BD boards, and can be flexibly configured according to requirements to meet on-site application requirements when the additional demand for digital or analog points of the machine is not large.

Features:

①Small size. Compared with the previously thought expansion module, the BD expansion board is only 1/10 of the expansion module.

② Flexible combination. It can support 2 BD boards at the same time. There are various types of expansion boards and can be mixed and matched with each other, and can be combined flexibly according to needs.

③High cost performance. Flexible points can make the products configured by customers more full, avoid unnecessary waste of points, and be more economical in cost

④Easy to install. X series PLC body comes with BD board slot, plug and play, more convenient and beautiful

⑤Exquisite appearance, BD board can be organically integrated with X series PLC, the overall structure is more compact, flat and refreshing

Model No.

X-1AI/1RTD-BD

Order No.

X-1AI/1RTD-BD

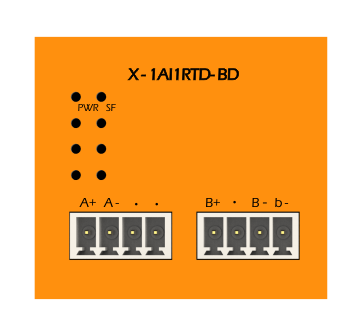

  Side View


  technical parameters




product information

BD board type

1AI/1RTD

order number

X-1AI/1RTD-BD

AI Input Features

Analog input channel

1

Power consumption

0.5W

input type

Current type 0~20mA

Data word format, full scale range

0 to 32000

Resolution

15 bits plus 1 sign bit, LSB value: 4.88mV

isolation

none

precision

±0.5% of full scale [typically 25 degrees]

Analog to digital conversion time

350ms

noise suppression

Typical -40dB@50Hz

RTD Input Characteristics

Analog input channel

1

Power consumption

0.5W

input type

Thermal resistance

Data word format, full scale range

Resistance: 0~+27648

input range

Thermal resistance: Pt100

temperature range

-200~600 ℃

Maximum input voltage

30V DC

Resolution

15 bits plus 1 sign bit

isolation

none

precision

±0.1%FS
