Order number: X-E16X16YT-00

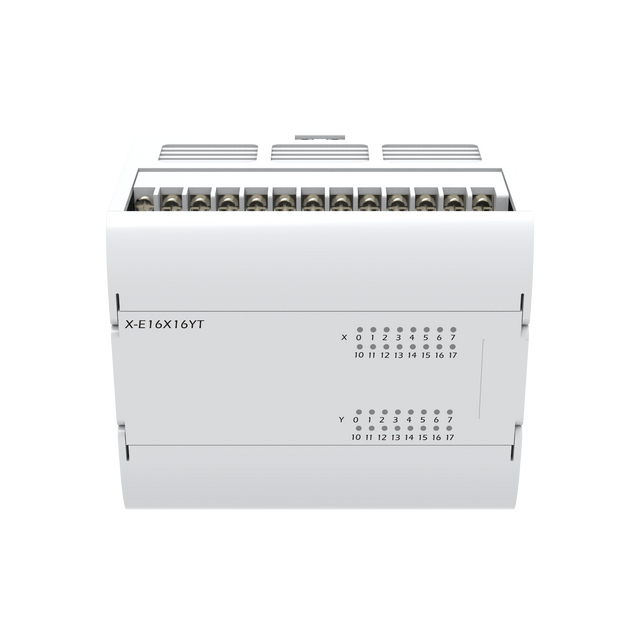

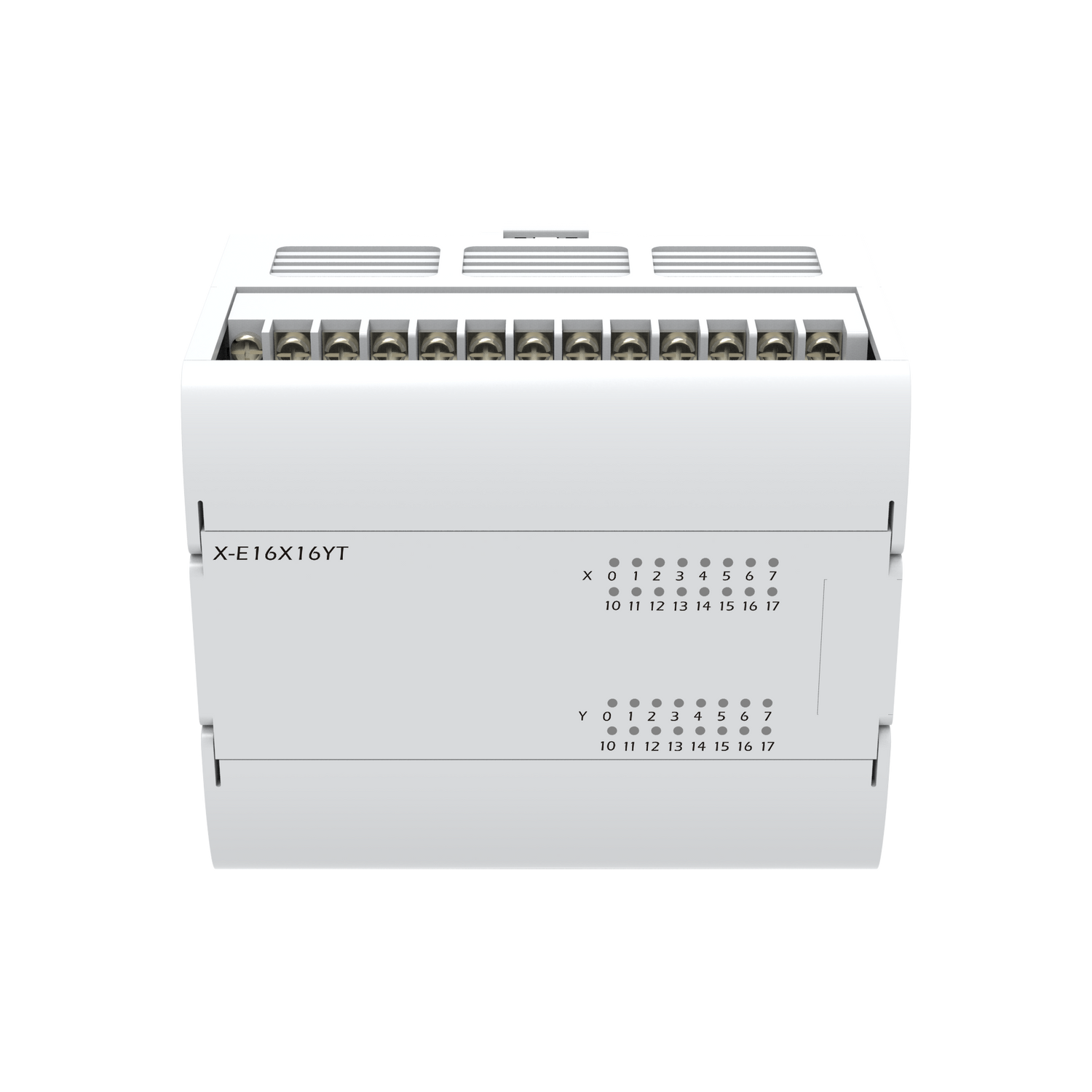

X series general digital mixed expansion module, 16DI/16DO, transistor.
X-E16X16YT
Model No.
X-E16X16YT
Order No.
X-E16X16YT-00
Side View
technical parameters
| Digital output characteristics | Transistor output (sink) | ||
| output type | Solid State - MOSFET | ||
| circuit insulation | optocoupler insulation | ||
| Rated voltage | 24VDC | ||
| Loop voltage range | 5~30VDC | ||
| Rated current per point (max) | 0.5A | ||
| Lamp load (max) | 1.5W/DC24V | ||
|
Response time
|
OFF→ON | 0.2ms or less | |
| ON→OFF | 0.2ms or less | ||
Wiring diagram
Structure diagram
