Order number: X-E4DA-00

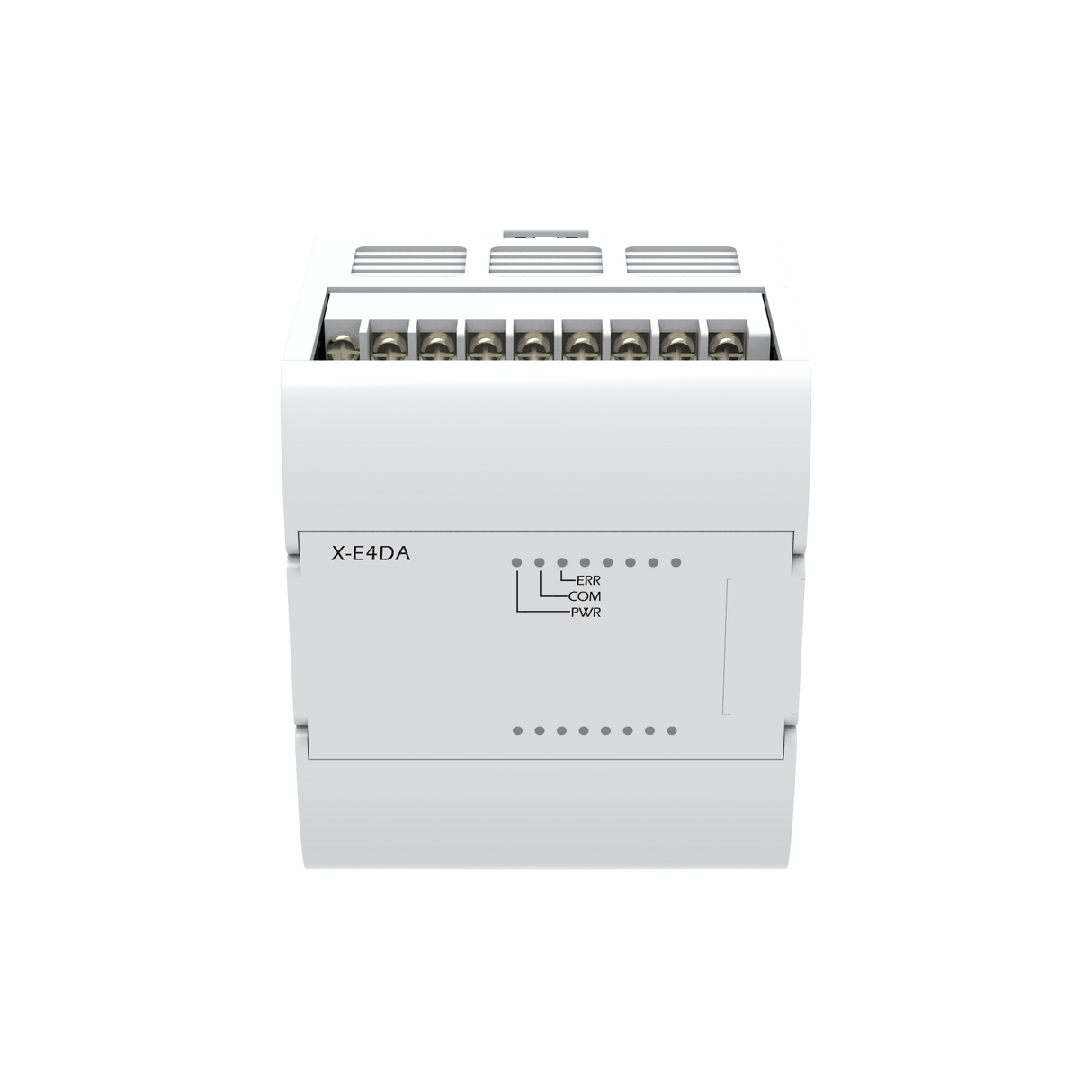

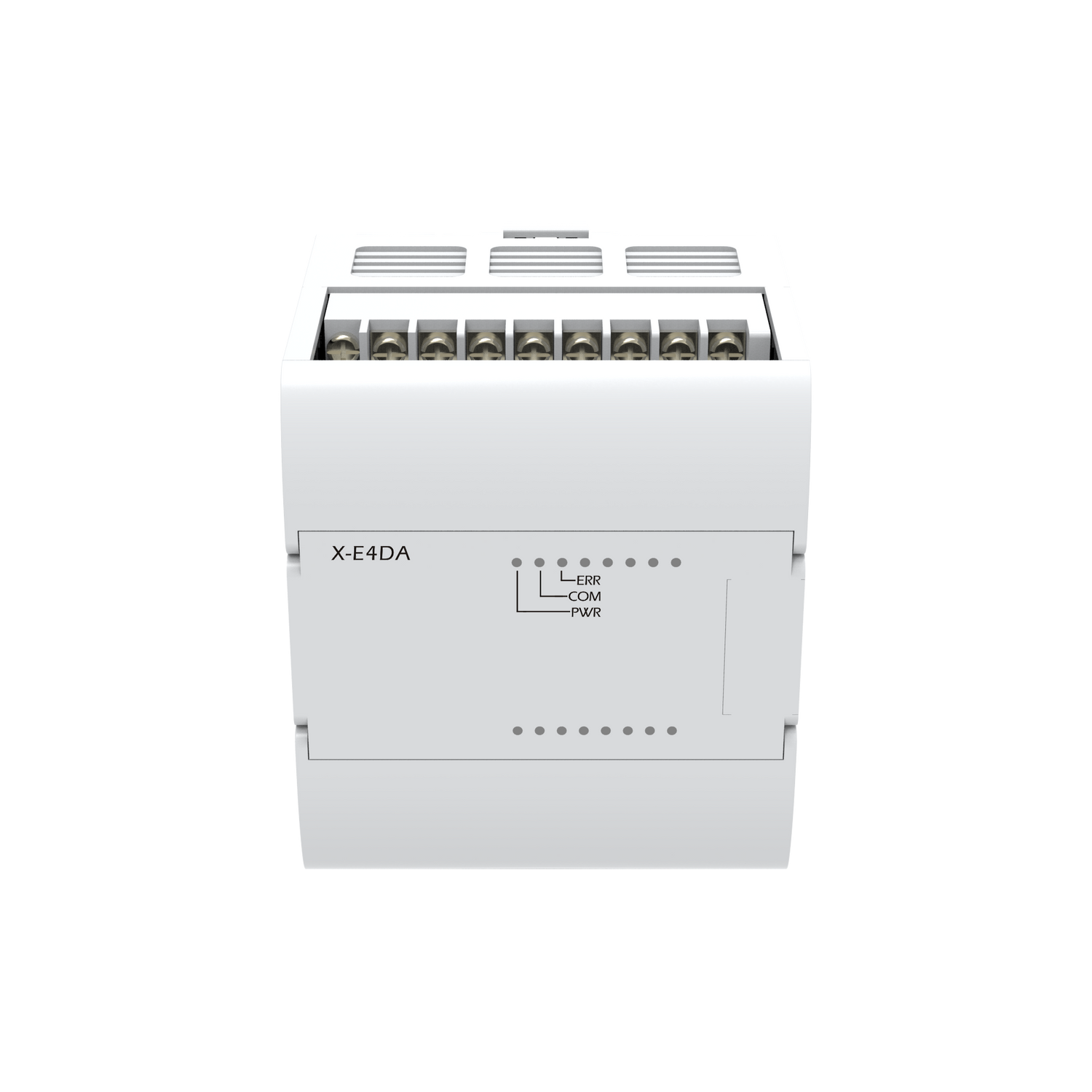

X series general analog output expansion module, 4AI, 14bit.
X-E4DA
Model No.
X-E4DA
Order No.
X-E4DA-00
Side View
technical parameters
| Voltage output range | -10V~+10V |
| Current output range | 0~20mA |
| Output Data Format Word Range | -32000~+32000 |
| Resolution | 16-bit voltage output, 15-bit current output |
| basic error | ±0.5FS |
| Load resistance, when voltage output | Minimum 5KΩ |
| Load resistance, when current output | Maximum 0.5KΩ |
| Isolation (field to logic) | >500V |
Wiring diagram
Structure diagram
