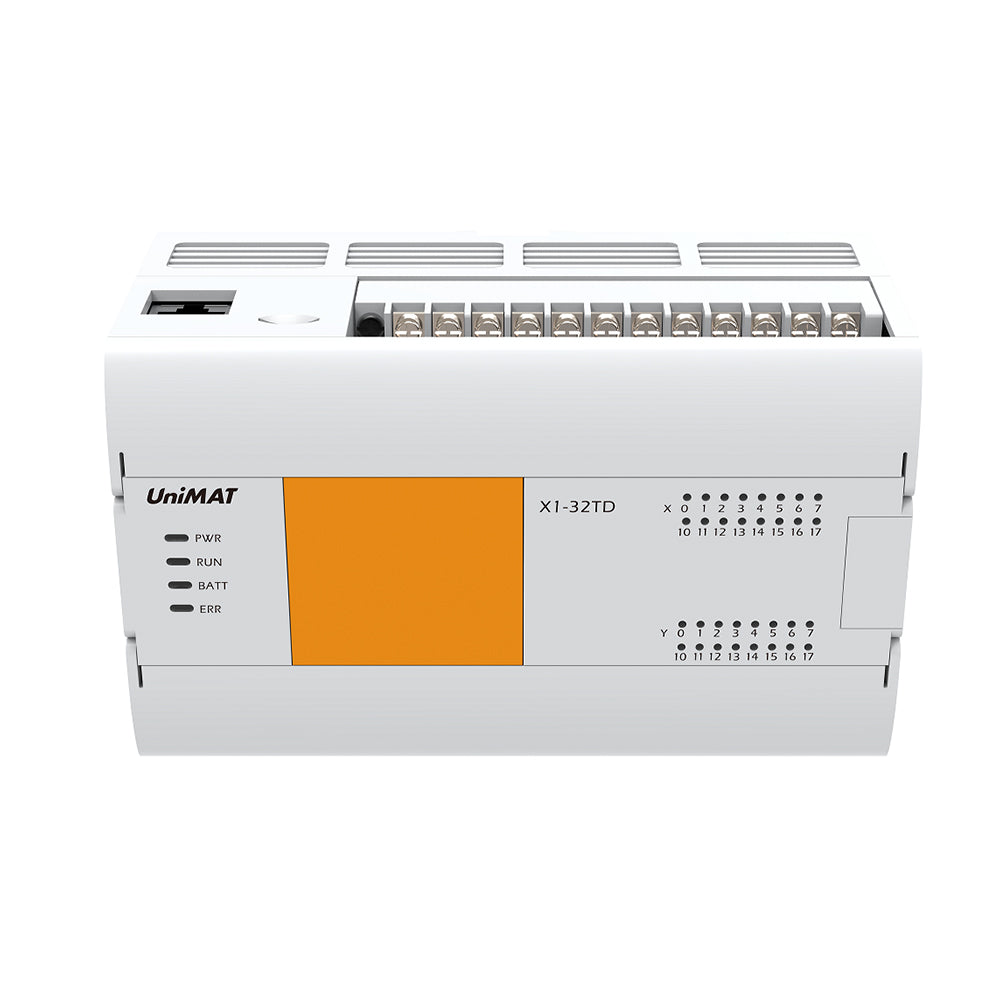

Model No.
X1-32TD-E0
X1-32TD-E0
Order No.
X1-32TD-E0
Side View
technical parameters
|
Voltage |
DC24V |
||||
|
Voltage range |
DC 20.4～28.8V |
||||
|
Allowed voltage |
continue to operate for the instantaneous power failure less than 5ms |
||||
|
Fuse |
60V 2A |
||||
|
Surge Current |
12A，0.5ms below/28.8V DC |
||||
|
Power consumption |
8W |
||||
|
DC24V power supply |
300mA below |
||||
|
Input specifications |
|||||
|
Input |
16 |
||||
|
Connection method |
Detachable terminal block (M3 screw) |
||||
|
Input method |
NPN/PNP |
||||
|
Input signal voltage |
DC power supply type: dc20.4v ～ 28.8v |
||||
|
Input impedance |
X0-X2 |
2.4K |
|||
|
X3 above |
5.6K |
||||
|
ONInput induced current |
X0-X2 |
More than 5mA |
|||
|
X3 above |
More than 2.4mA |
||||
|
OFF Input induced current |
1mA below |
||||
|
Input response time |
No more than 4.5ms |
||||
|
Input signal form |
Voltage free contact input |
||||
|
Drain input: NPN open collector transistor |
|||||
|
Source type input:PNPOpen collector transistor |
|||||
|
Input circuit isolation |
Optocoupler isolation |
||||
|
Display of input |
When the optocoupler is driven, the LED light on the panel is on |
||||
|
Output specifications |
|||||
|
Output |
16 |
||||
|
Connection method |
Detachable terminal block (M3 screw) |
||||
|
Output method |
NPN/PNP |
||||
|
External Power supply |
DC5～30V |
||||
|
Max load |
Resistive load |
0.5A/single point；0.8A/4 points |
|||
|
inductive load |
12W/DC24V |
||||
|
Light load |
High speed：2W/DC24V、common：5W/DC24V |
||||
|
Min Load |
5mA（DC5～24V） |
||||
|
Open circuit leakage current |
0.1mA以下/DC30V |
||||
|
Turn on resistance |
High speed point 0.3Ω typical（Max0.6Ω） |
||||
|
response time |
OFF→ON |
High spend:10μs below/10mA above(DC5～24V) |
|||
|
Ordinary :0.2ms below/200mA above (DC24V) |
|||||
|
ON→OFF |
High spend:10μs below/10mA above(DC5～24V) |
||||
|
Ordinary:0.2ms以下/200mA above(DC24V) |
|||||
|
Loop isolation |
Optocoupler isolation |
||||
|
Display of output action |
When the optocoupler is driven, the LED light on the panel is on |
||||
|
Shield transmission distance |
500M（ordinary output） |
||||
|
Unshielded transmission distance |
150M(ordinary output) |
||||
Wiring diagram
