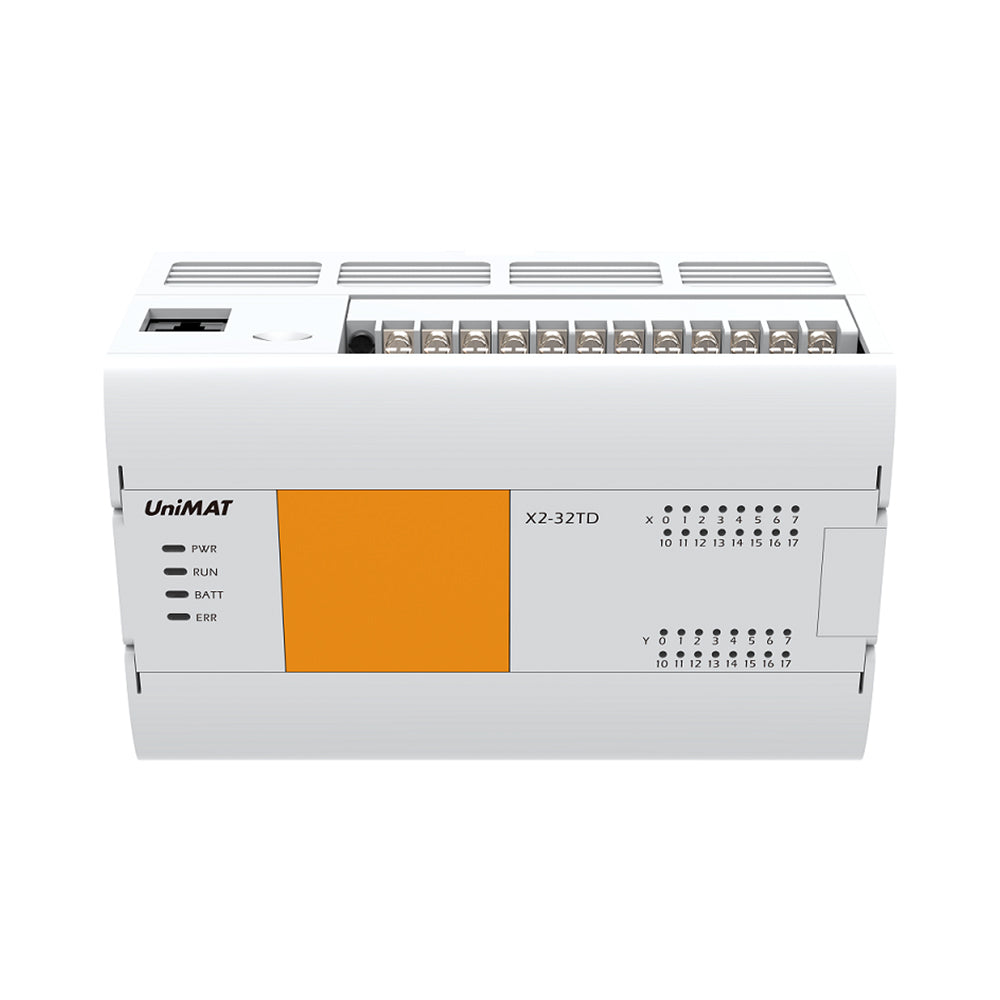

X2-32TD-E0


Voltage

DC24V



Voltage range

DC 20.4~28.8V





Allowed voltage

continue to operate for the instantaneous power failure   less than 5ms





Fuse

60V 2A





Surge Current

12A,0.5ms below/28.8V DC





Power consumption

24W





DC24V power supply

300mA below





DC5V internal power   supply

800mA below



Input specifications







Input

16





Connection method

Detachable terminal block (M3 screw)





Input method

NPN/PNP





High speed counter

Single phase 200Khz(3PCS) AB phase 100Hz(3PCS)



Input signal voltage

DC power supply type: dc20.4v ~ 28.8v





Input impedance

X0-X5

3.3K



X6-X7

3.3K

X10 above

5.6K



ONInput induced current

X0-X5

More than 5mA



X6-X7

More than 5mA

X10 above

More than 4mA



OFF Input induced current

1mA below





Input response time

No more than 4.5ms





Input signal form

Voltage free contact input





Drain input: NPN open collector transistor





Source type input:PNP,Open collector transistor





Input circuit isolation

Optocoupler isolation





Display of input

When the optocoupler is driven, the   LED light on the panel is on





Output specifications









Output

16





Max frenquency

Singal end 2 Axis 200K



Connection method

Detachable terminal block (M3 screw)





Output method

NPN/PNP





External Power supply

DC5~30V





Max load

Resistive load

0.5A/single point;





inductive load

12W/DC24V





Light load

High speed:2W/DC24V、common:5W/DC24V





Min Load

5mA(DC5~24V)





Open circuit leakage current

0.1mA below /DC30V





Turn on resistance

High speed point 0.3Ω typical(Max0.6Ω)





response time

OFF→ON

High spend:5μs   below/10mA above(DC5~24V)





Ordinary :0.2ms below/200mA above (DC24V)





ON→OFF

High spend:5μs below/10mA above(DC5~24V)





Ordinary:0.2ms below/200mA   above(DC24V)





Loop isolation

Optocoupler isolation





Display of output action

When the optocoupler is driven, the LED   light on the panel is on





Shield transmission distance

500M(ordinary output)





Unshielded transmission distance

150M(ordinary output)





WIRING DIAGRAM

SIZE DIAGRAM
