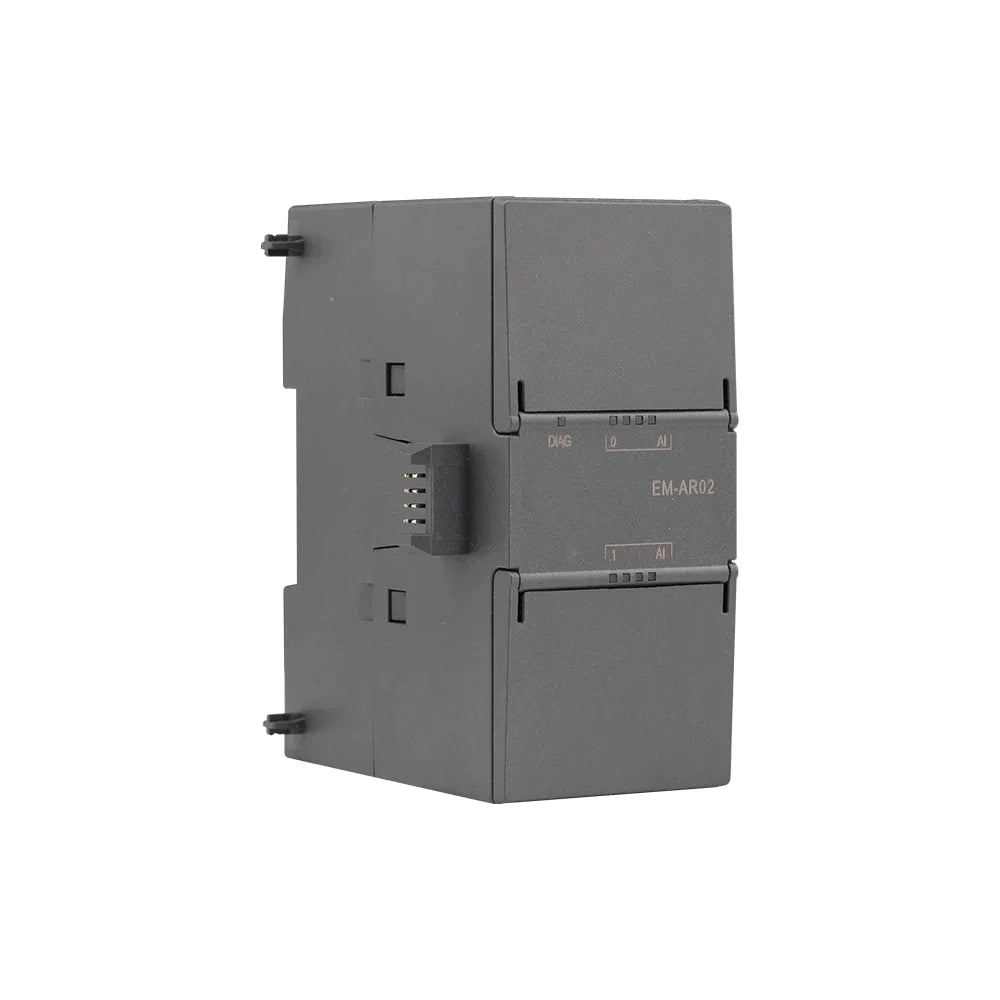

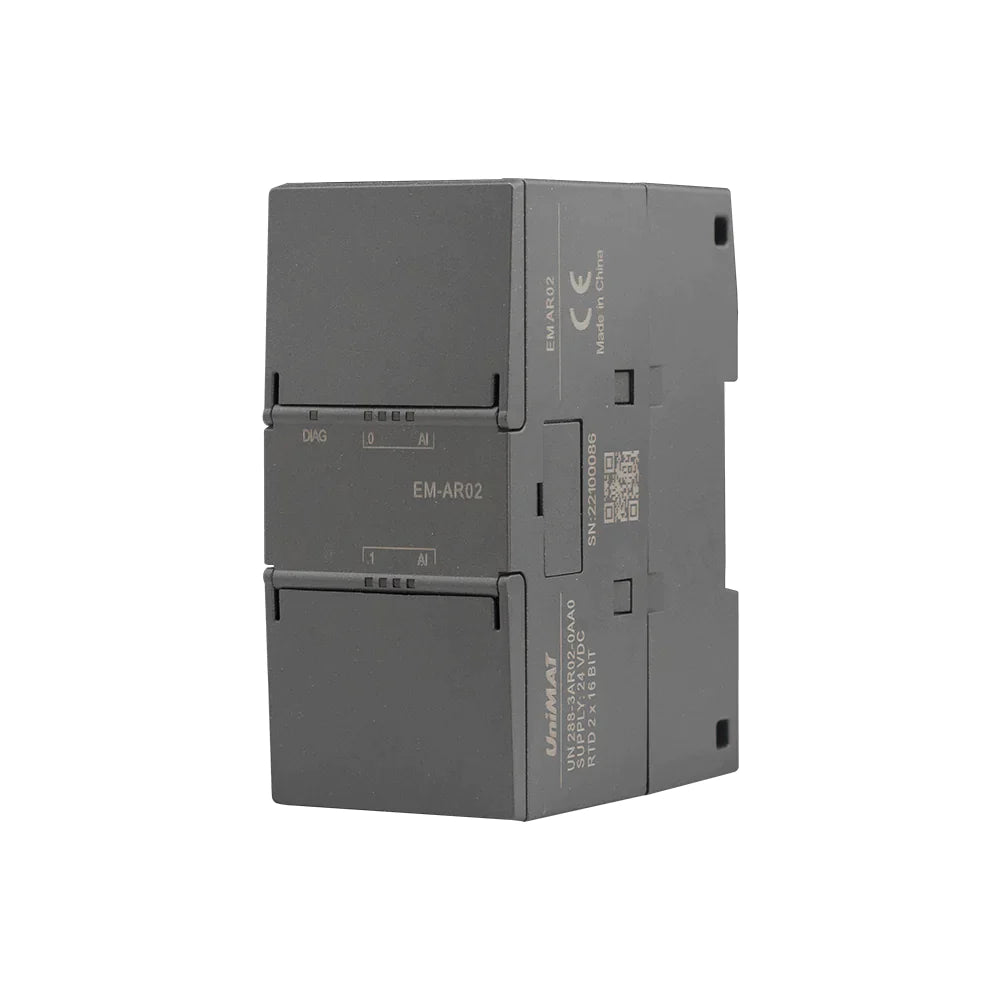

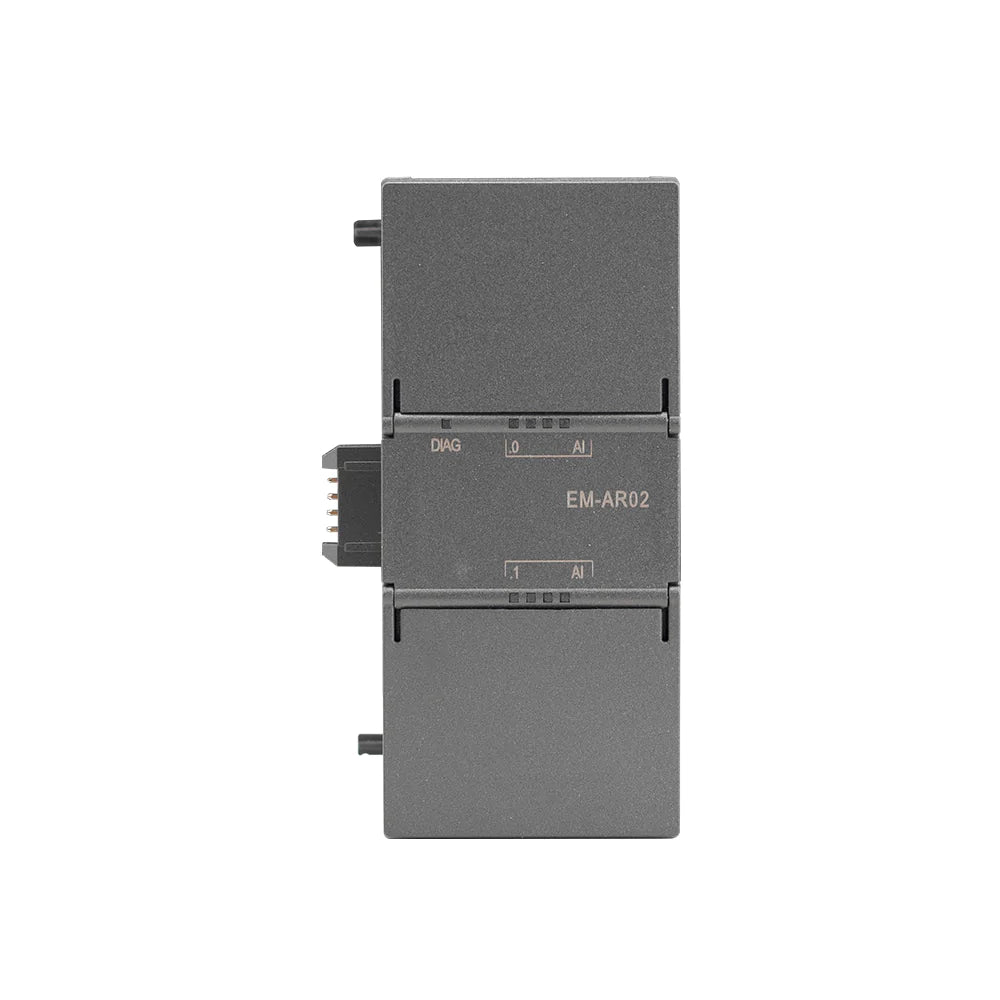

EM AR02
$0.00
Unit price
/
Unavailable
| model | EM AR02 |
|---|---|
| order number | UN 288-3AR02-0AA0 |
| conventional | |
| Dimensions W x H x D (mm) | 45 x 100 x 81 |
| weight | 148.7g |
| power consumption | 1.5W |
| Current Consumption (SM Bus) | 80 mA |
| Current consumption (24 V DC) | 40 mA |
| analog input | 2 |
| Input channels | |
| type | RTD and resistor values for module reference ground |
| Resolution Temperature Resistance | 0.1 ˚ C / 0.1 ˚ F 15 bits + sign bit |
| maximum withstand voltage | ±35V |
| noise suppression | 85dB, 10Hz/50Hz/60Hz/400Hz |
| common mode rejection | > 120dB |
| impedance | ≥ 10 MΩ |
| isolation | 500V AC |
| Channel-to-channel isolation | - |
| precision | Please refer to the RTD sensor selection table |
| repeatability | ±0.05% FS |
| Maximum Sensor Power Consumption | 0.5mW |
| Measuring principle | integral |
| Module update time | Please refer to the noise reduction selection table |
| Cable length (maximum) | Maximum length to sensor 100 m |
| overflow/underflow | √ |
| Open circuit (current mode only) | √ |
| 24 V DC low voltage | √ |
Dimensions (mm)
Installation Size
EM AR02
$0.00
Unit price
/
Unavailable
20 years experience
3-year warranty
Support free sample test
- Shenzhen Unimat Automation Technology Co., Ltd., established in 2005, is a National High-Tech Enterprise, a Specialized and Innovative Enterprise, and a participant in the development of the national standard for Programmable Controllers, specializing in industrial automation control.
- The company's products include PLCs, HMIs, VFDs, and Industrial Internet of Things systems, all of which have complete independent intellectual property rights.
As of December 2023, UniMAT PLC sales have exceeded 2,000,000 units.
