Specifications

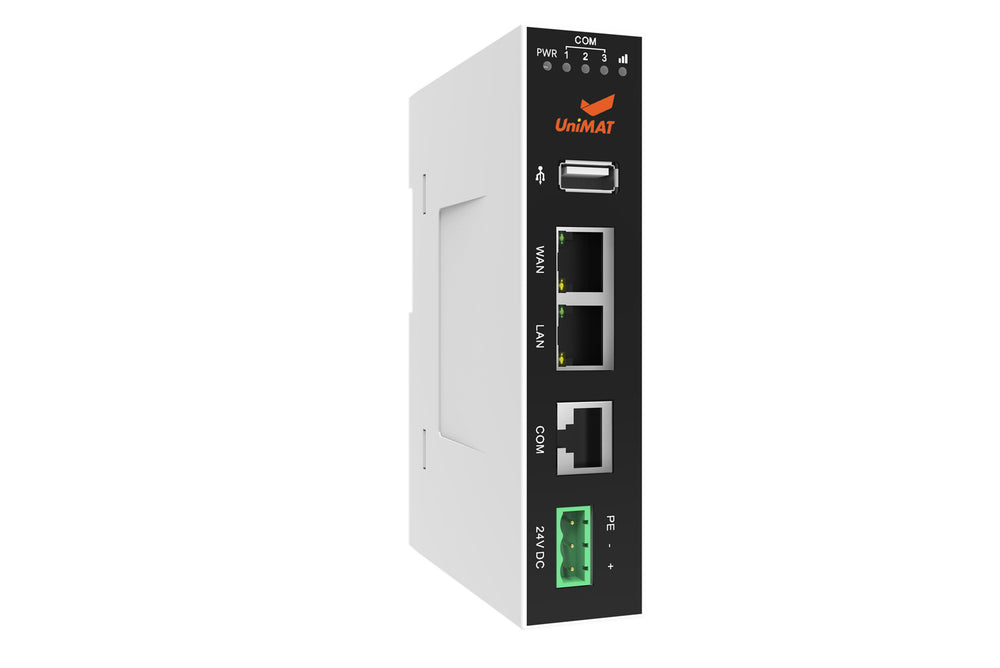

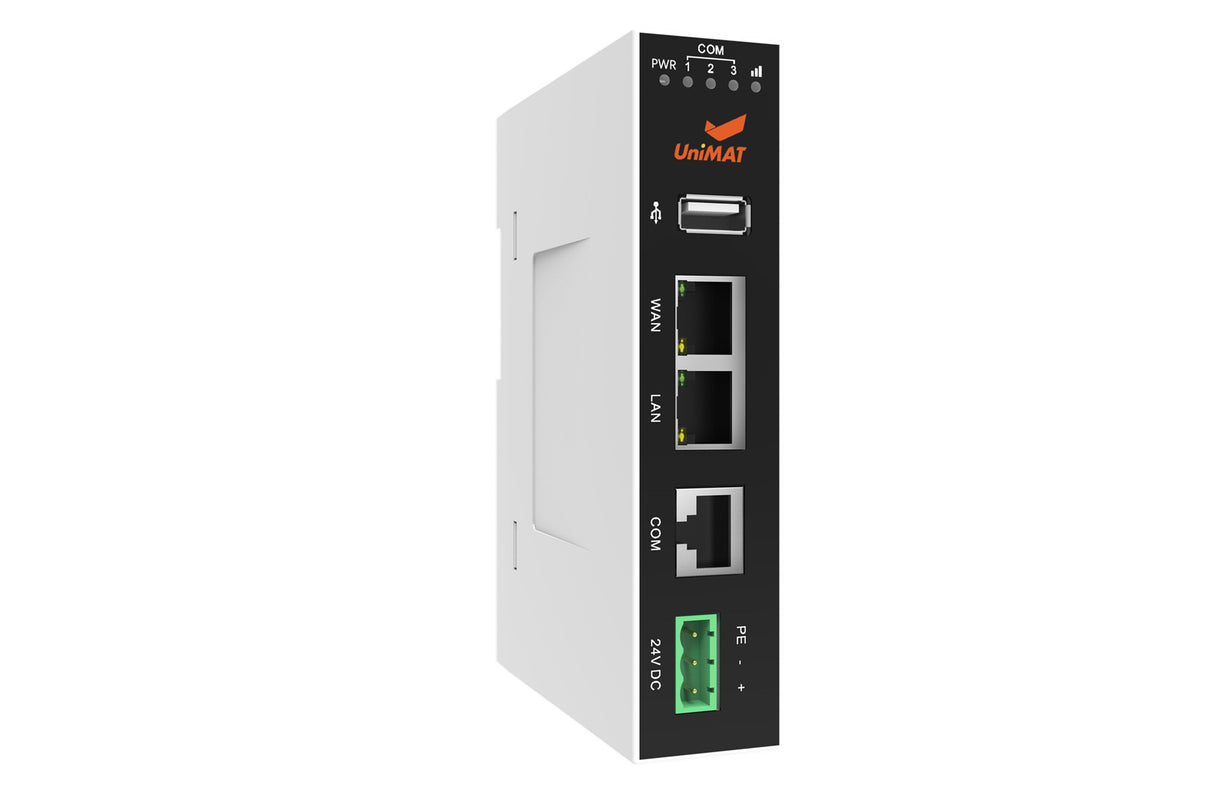

UBox
Technical Parameters
CPU
A8 600MHz 32bit
Memory
256M FLASH+128M DDR3
Real clock
Support
USB HOST
USB 2.0×1 Type A
Series por
RJ45，COM1: RS485 COM2:RS485/RS232
Ethernet
10/100M self-adaption
wifi
N/A
Support
N/A
4G
N/A
N/A
Support
Antenna
N/A
Support
Support
Electrical specification
Rated power
7.2W
Rated Voltage
DC24V
Input range
10~28.8V DC
Allowable power loss
10ms
insulation resistance
Over 50MΩ@500VDC
Voltage resistance
500VAC 1min
Structural specification
Housing color
Black+ white
Housing material
ABS+ PC plastic，metal
Outer size
130×95×30mm
Weight
175g
Environmental specifications
175g
working temperature
0~50℃
Working humidity
10~90%RH（non-condensing）
Storage temperature
-20~60℃
Storage humidity
10~90%RH（non-condensing）
Seismic performance
10~25Hz（X、Y、Z direction 2G/20 min）
Cooling mode
Natural Air Cooling
Product certification
panel protection level
IP20
CE certification
Compliance with CE Certification
Structure Diagram
