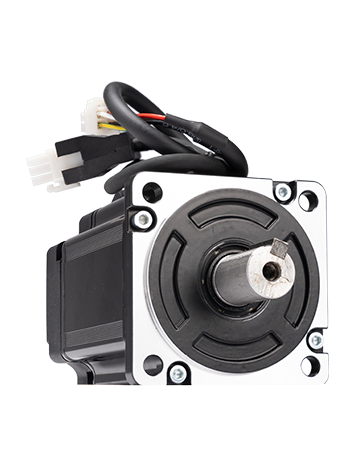

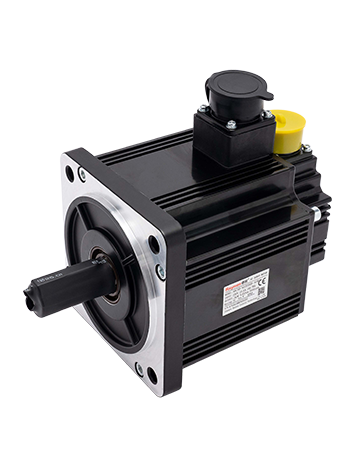

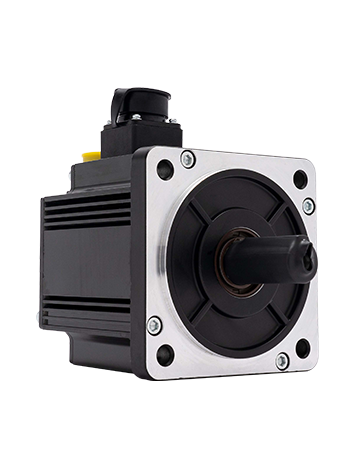

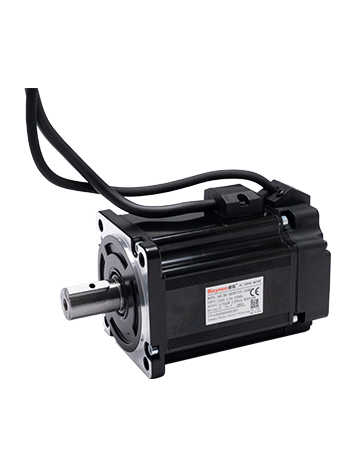

MC2Y Series Servo Motors
MC2 series motors support single-turn 17-bit magnetic encoding, multi-turn 17-bit magnetic encoding, and multi-turn 23-bit optical encoding. Small speed/torque fluctuation, small axial movement, low noise, low temperature rise, more reliable performance, and smoother operation. In conjunction with servo drives, it can more accurately complete speed control, torque control, and position control. Supports industry applications such as labeling machines, cutting machines, and manipulators.
Selection table
| Product series | Inertia level | Flange | Rated Power | Rated speed | Voltage level | Rated torque | Moment of Inertia | Motor Model | Driver Model | Overload multiple |
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (kW) | （Maximum speed） | (N·m) | (kg·cm²) | ||||||
| （rpm） | ||||||||||
| MC2Y | Low inertia (MC2SY) |
60 | 0.2 | 3000（6000） | 220V | 0.64 | 0.2(02) | MC2S-M06020F口Y | 1R6L | 3 |
| 0.4 | 1.27 | 0.7(0.29) | MC2S-M06040F口Y | 2R8L | 3 | |||||
| 80 | 0.75 | 2.39 | 0.9(0.96) | MC2S-M08075F口Y | 5R5L | 3 | ||||
| 1 | 3.18 | 1.125(1.185) | MC2S-M08100F口Y | 6R6L/7R6M | 2.5/3.5 | |||||
| 110 | 1.2 | 3000（5000） | 4 | 1.75 | MC2S-M11120F口Y | 7R6M | 3 | |||
| 1.5 | 5 | 2.5 | MC2S-M11150F口Y | 12RM | 3 | |||||
| 1.8 | 6 | 3.1 | MC2S-M11180F口Y | 12RM | 3 | |||||
| 0.8 | 2000（3000） | 4 | 1.75 | MC2S-M11080D口Y | 6R6L | 3 | ||||
| 1 | 5 | 1.75 | MC2S-M11100D口Y | 6R6L/7R6M | 2.5/3.5 | |||||
| 1.2 | 6 | 2.5 | MC2S-M11120D口Y | 7R6M | 3 | |||||
| 2 | 10 | 4.2 | MC2S-M11200D口Y | 12RM | 3 | |||||
| 0.95 | 1500（3000） | 6 | 2.5 | MC2S-M11095C口Y | 6R6L | 3 | ||||
| 1.8 | 12 | 4.2 | MC2S-M11180C口Y | 12RM | 2 | |||||
| 130 | 1 | 3000（5000） | 3.18 | 2.44（4.34） | MC2S-M13100F口Y | 6R6L/7R6M | 2.5/3 | |||
| 1.5 | 4.77 | 3.08（4.98） | MC2S-M13150F口Y | 12RM | 3 | |||||
| 2 | 6.37 | 4.0（5.9） | MC2S-M13200F口Y | 12RM | 3 | |||||
| 1 | 380V | 3.18 | 2.44（4.34） | MC2S-T13100F口Y | 5R4T | 3 | ||||
| 1.5 | 4.77 | 3.08（4.98） | MC2S-T13150F口Y | 5R4T | 3 | |||||
| 2 | 6.37 | 4.0（5.9） | MC2S-T13200F口Y | 8R4T | 3 | |||||
| 3 | 9.55 | 6.2(8.1) | MC2S-T13300F口Y | 12RT | 3 | |||||
| 4 | 12.7 | 10.59(12.49) | MC2S-T13400F口Y | 17RT | 3 | |||||
| 5 | 15.9 | 13.15(15.05) | MC2S-T13500F口Y | 17RT | 3 | |||||
| MC2Y | Medium inertia (MC2DY) |
180 | 2 | 2000（3000） | 220V | 9.55 | 23.3（29.1） | MC2D-M18200D口Y | 12RM | 3 |
| 2 | 380V | 9.55 | 23.3（29.1） | MC2D-T18200D口Y | 8R4T | 3 | ||||
| 3 | 14.32 | 30.5(36.3) | MC2D-T18300D口Y | 12RT | 3 | |||||
| 4 | 19.1 | 41.3(47.2) | MC2D-T18400D口Y | 12RT | 3 | |||||
| 5 | 23.87 | 57.6(63.4) | MC2D-T18500D口Y | 17RT | 3 | |||||
| 2 | 1000（1500） | 19.1 | 57.6（63.4） | MC2D-T18200B口Y | 5R4T | 3.5 | ||||
| 3 | 28.65 | 81(86.6) | MC2D-T18300B口Y | 8R4T | 3.5 | |||||
| 4 | 38.2 | 119.6(124.6) | MC2D-T18400B口Y | 12RT | 3.5 | |||||
| 2.9 | 1500（3000） | 18.5 | 41.3(47.2) | MC2D-T18290C口Y | 8R4T | 2.5 | ||||
| 4.4 | 28 | 57.6(63.4) | MC2D-T18440C口Y | 12RT | 2.5 | |||||
| 5.5 | 35 | 81(86.6) | MC2D-T18550C口Y | 17RT | 2.5 | |||||
| 7.5 | 48 | 119.6(124.6) | MC2D-T18750C口Y | 21RT | 2.5 | |||||
| MC2Y | High inertia (MC2HY) |
40 | 0.1 | 3000（6000） | 220V | 0.32 | 0.067（0.068） | MC2H-M04010F口Y | 1R6L | 4 |
| 60 | 0.2 | 0.64 | 0.29(0.3) | MC2H-M06020F口Y | 1R6L | 3 | ||||
| 0.4 | 1.27 | 0.54(0.55) | MC2H-M06040F口Y | 2R8L | 3 | |||||
| 0.6 | 1.91 | 0.8（0.81） | MC2H-M06060F口Y | 5R5L | 3 | |||||
| 80 | 0.75 | 2.39 | 1.55(1.65) | MC2H-M08075F口Y | 5R5L | 3 | ||||
| 1 | 3.18 | 2(2.1) | MC2H-M08100F口Y | 6R6L/7R6M | 2.5/3 | |||||
| 130 | 0.85 | 1500（3000） | 5.41 | 14.8(16.9) | MC2H-M13085C□Y | 5R5L | 3 | |||
| 1 | 2000（4500） | 4.77 | 14.8 | MC2H-M13100D口Y | 6R6L/7R6M | 2.5/3 | ||||
| 1.3 | 1500（3000） | 8.28 | 21(23) | MC2H-M13130C口Y | 6R6L/7R6M | 2.5/3 | ||||
| 1.5 | 2000（4500） | 7.16 | 21 | MC2H-M13150D口Y | 12RM | 3 | ||||
| 1.8 | 1500（3000） | 11.48 | 28.5(30.6) | MC2H-M13180C口Y | 12RM | 3 | ||||
| 2 | 2000（4500） | 9.55 | 28.5 | MC2H-M13200D口Y | 12RM | 3 | ||||
| 2.3 | 1500（2000） | 14.64 | 38(36.9) | MC2H-M13230C口Y | 12RM | 3 | ||||
| 0.85 | 1500（3000） | 380V | 5.41 | 14.8（16.9） | MC2H-T13085C口Y | 5R4T | 3 | |||
| 1.3 | 1500（3000） | 8.28 | 21(23.1) | MC2H-T13130C口Y | 3R5T/5R4T | 2.5/3 | ||||
| 1.8 | 1500（2000） | 11.46 | 28.5（30.6） | MC2H-T13180C口Y | 5R4T/8R4T | 2.5/3 | ||||
| 2.3 | 2000（3000） | 14.64 | 34.8(36.9) | MC2H-T13230C口Y | 5R4T/8R4T | 2.5/3 |
