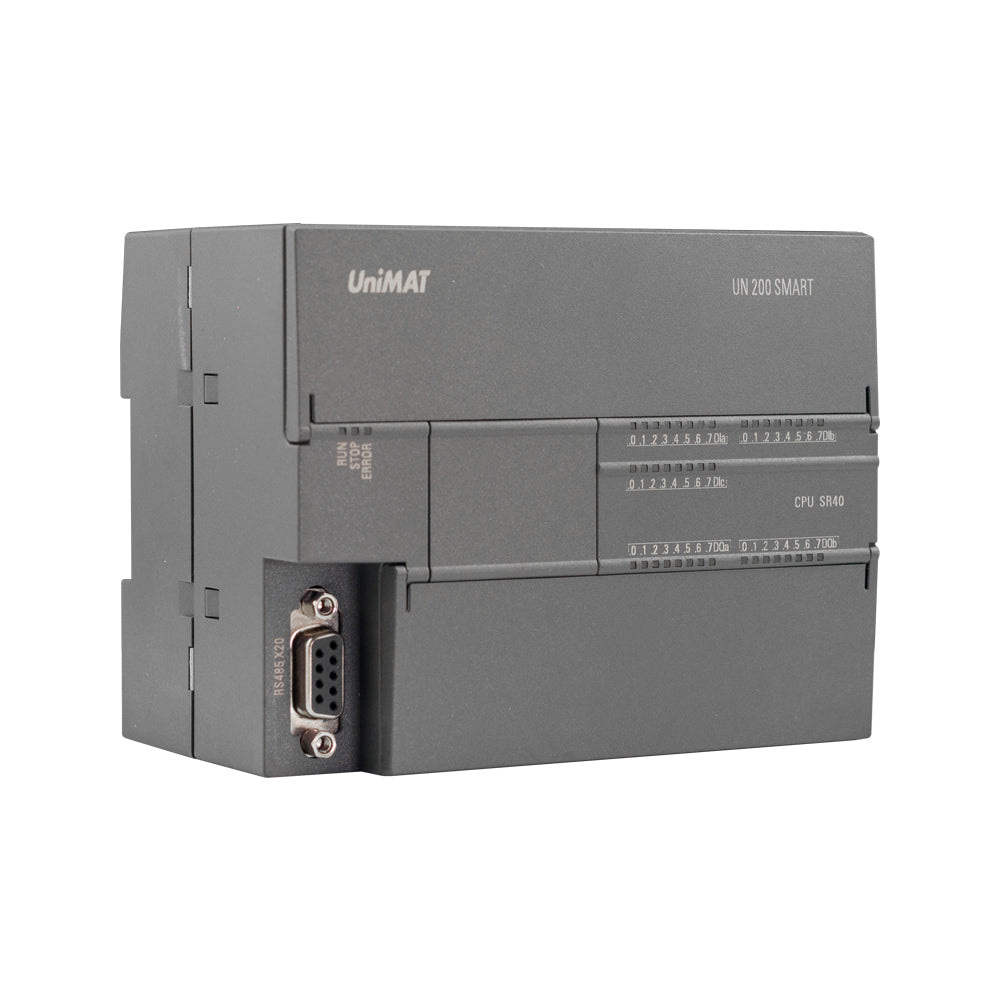

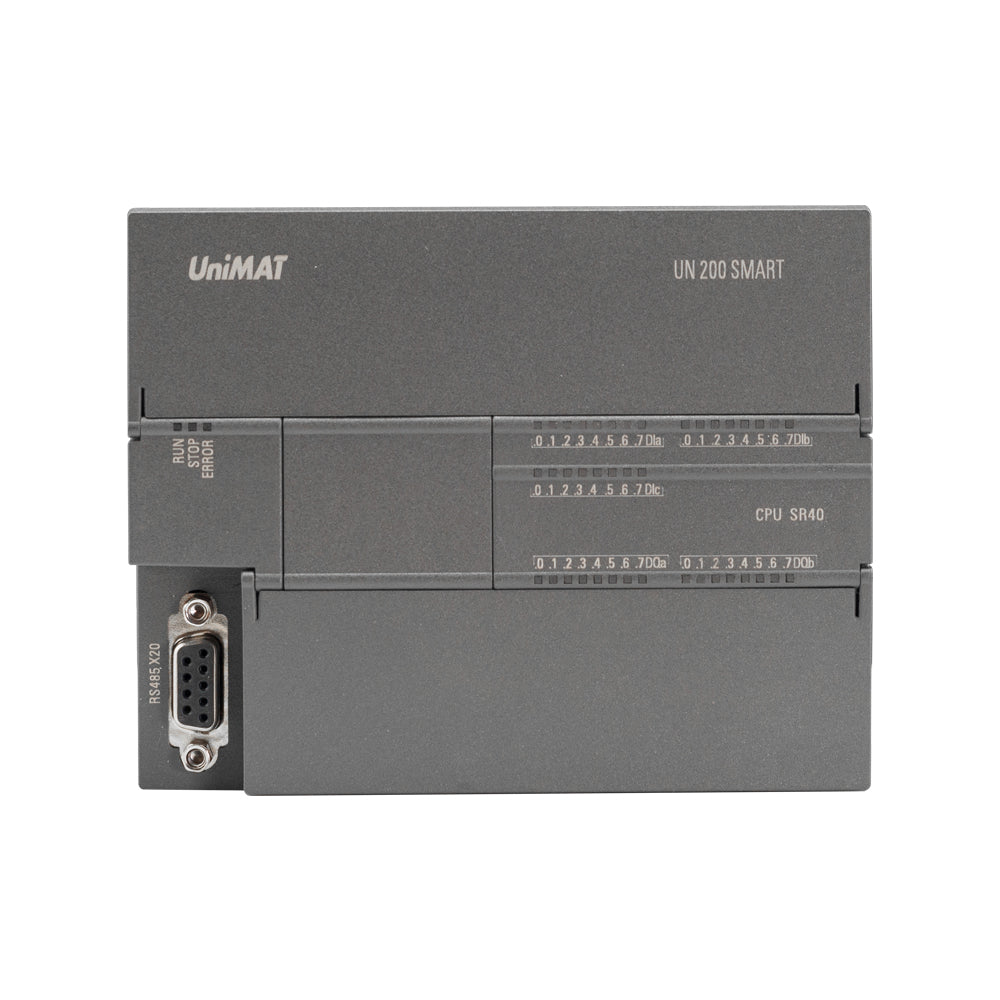

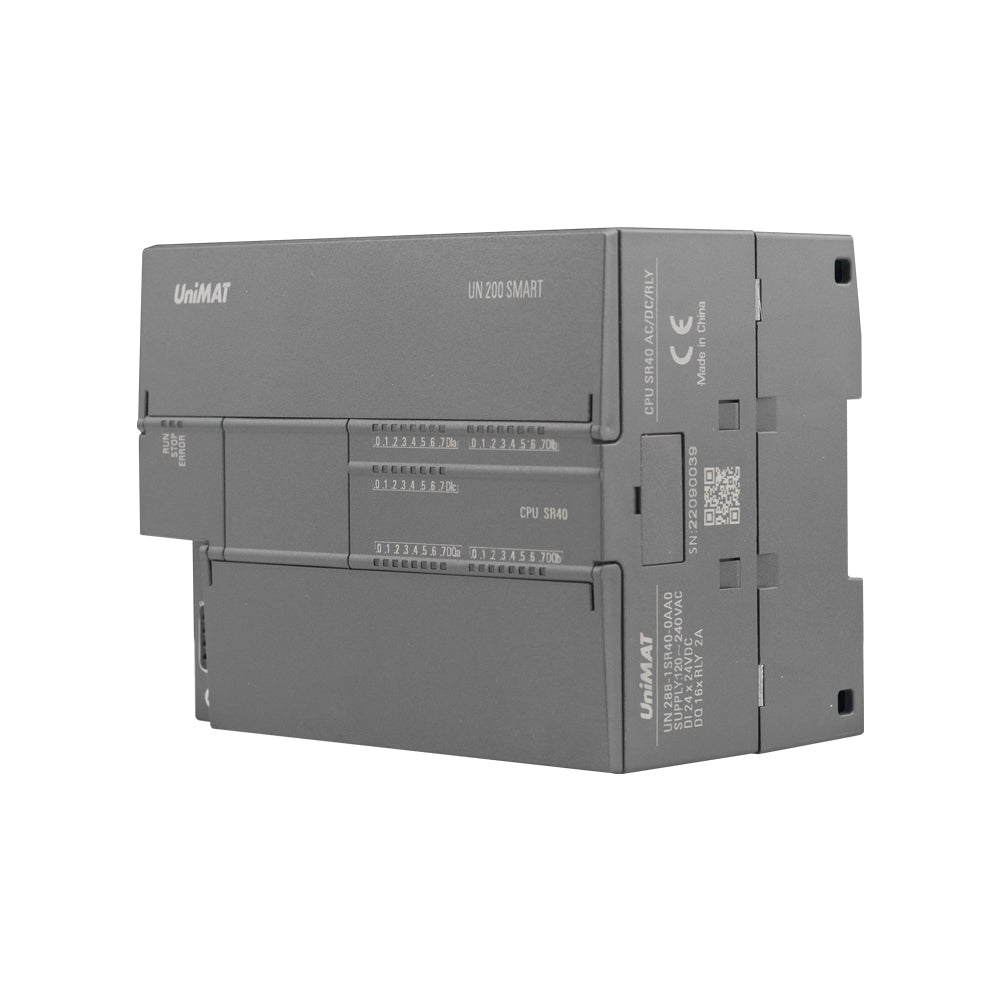

CPU SR40
$0.00
Unit price
/
Unavailable
UN 200 SMART PLC is a small PLC product with high performance, high integration and high cost performance independently developed by UniMAT Automation.
UN SMART PLC has different types of CPU modules with different I/O points. The maximum number of single I/O points can reach 60 points. Automation equipment requirements.
CPU SR40 PRARMETER
| Item | CPU SR40s | |
| Part No. | UN 288-1SR40s-0AA1 | |
| Dimension(w*H*D)mm | 125*100*81 | |
| Current suppIy | Max.300mA | |
| DI current consumer(24VDC) | 4mA input of each using point | |
| CPU Characters | ||
| User Memory |
24KB programming memory 16KB data memory/10KB retentive memory |
|
| LocaI digitaI I/O | 24DI/ 16DO | |
| ModuIe expansion | Not support | |
| Communication Board | Max.1 | |
| High speed pulse | SingIe phase : 4*60KHz | |
| Orthogonal phase: 1*30KHz | ||
| Ports |
Ethernet:1 | |
| Com port:1 (RS485) | ||
| Expanding port: RS485 SB card*1 (Port 1) | ||
| Programming device | Com port: 1 connection, Ethernet port : 1 connection | |
| CPU(PUT/GET) | Ethernet:(Total 8) can automatically configurable for 7 | |
| Power | ||
| Power input VoItage range | 85~264VAC | |
| Power output VoItage range | 20.4~28.8VDC | |
| Rated output current (Max.) | 300mA | |
| DigitaI input | ||
| Input points | 24 | |
| Type | NPN/PNP | |
| Rated voItage | 3.9mA rated 24VDC (5V are not available) | |
| AIIowed continue voItage | Max.30VDC | |
| Logic 1 signaI (Min.) | 15VDC at 2.4mA | |
| Logic 0 signaI (Max.) | 5VDC at 1mA | |
| FiItering time | 0,6.4,12.8ms | |
| DigitaI output | ||
| output points | 16 | |
| Type | ReIay dry contact | |
| VoItage range | 5~30VDC or 5~250VAC | |
| Rated current(Max.) per point | 2.0A | |
