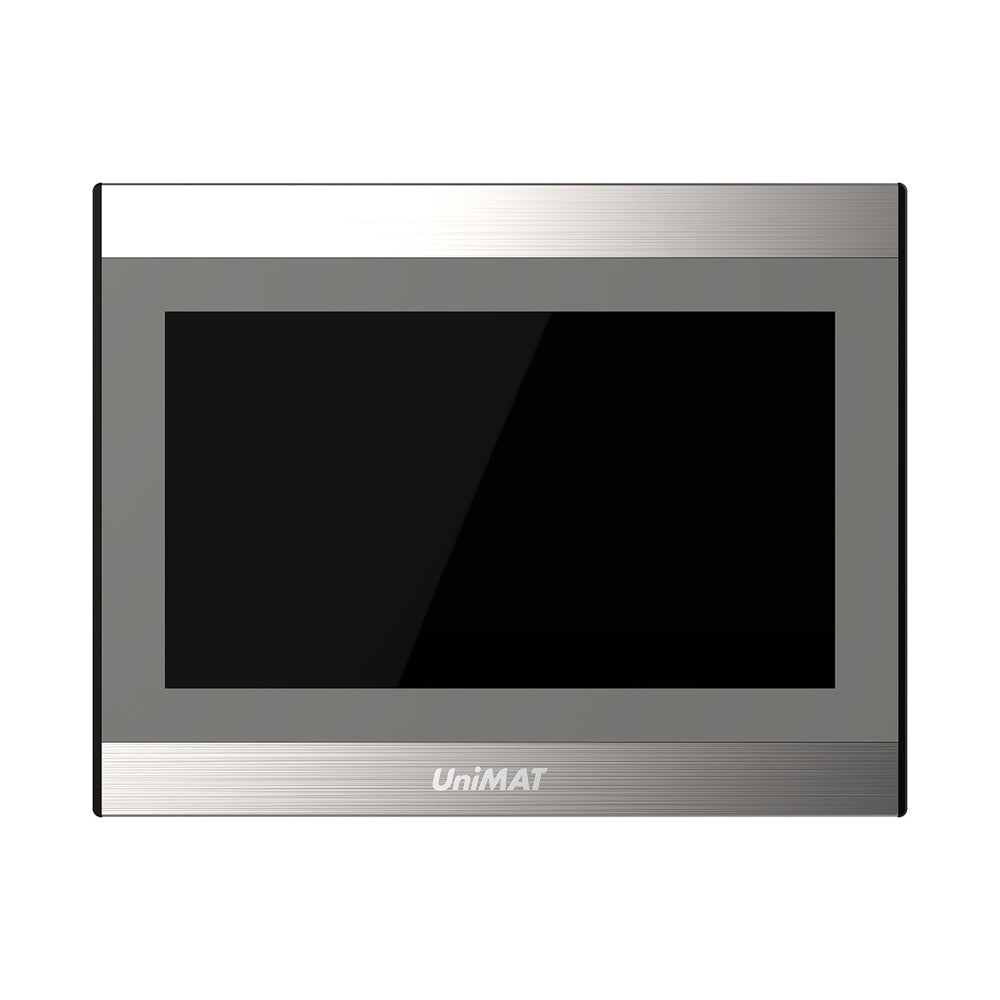

UH 510AS
$0.00
Unit price
/
Unavailable
24-bit true color , clear picture, using Cortex A8 processor;
UH510 is a 10" TFT LCD resistive touch HMI with a resolution of 1024x600;
A variety of interfaces can be extended for information interaction between the system and users;
| Model No. | UH 510AS |
|---|---|
| Order No. | UH 510-1AU01-0AA8 |
| type | LCD screen |
| Resolution | 1024 × 600 |
| display color | 65535 colors |
| Backlight type | LED |
| LCD life | 30000 hours |
| Display brightness | 350cd/㎡ |
| Touch Type | 4 -wire resistive |
| processor | A8，600MHz |
| storage | 256MB FLASH+128MB DDR3 |
| USB Host | USB2.0 x 1 , Type A(USB1), support U disk to update firmware, configure and store data |
| serial interface | COM1：RS485 COM2：RS232 |
| DB9 | male head |
| Ethernet | not support |
UH 510AS DIMENSION
