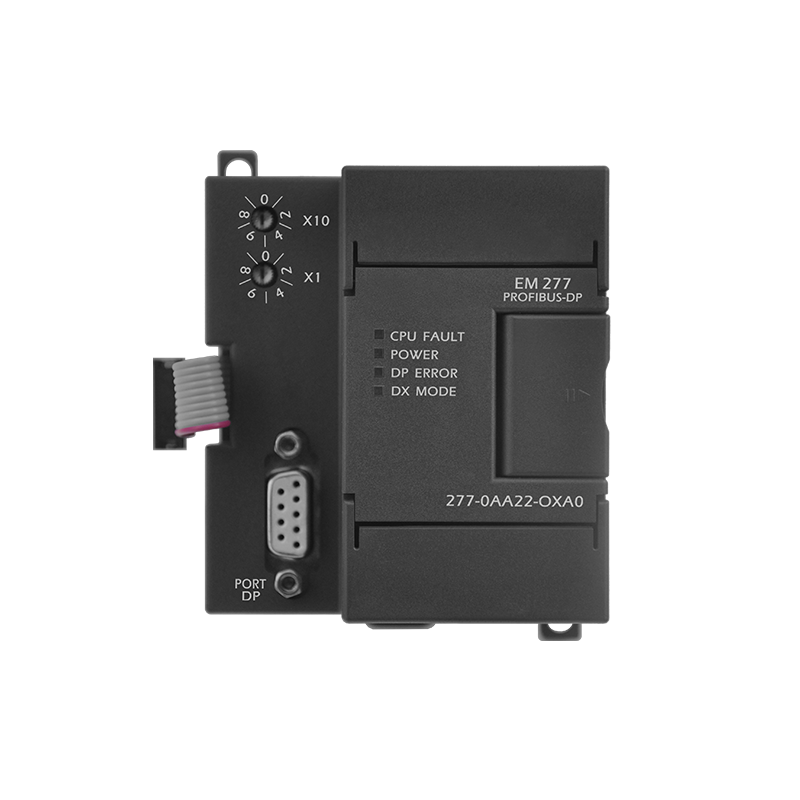

EM277 PROFBUS-DP Module
Be used in distributed I/O system with PROFIBUS-DP interface
Optical isolation, Stable
|
Description |
Be used in distributed I/O system with PROFIBUS-DP interface Optical isolation, Stable |
|
Module feature |
|
|
Port |
1 |
|
Port Type |
RS-485 |
|
Protocol |
PROFIBUS-DP |
|
PROFIBUS-DP Speed |
9.6, 19.2, 45.45, 93.75, 187.5 and 500Kbps 1.5, 3, 6 and 12Mbps |
|
Net Ability |
|
|
Sub-station address setting |
0 to 99（setting by rotary swtich） |
|
Max Sub-staion per Net section |
32 |
|
Max Sub-station per Net |
126, but just 99 EM277 Sub-station |
|
Cable Length |
|
|
Below 93.75kbps |
1200 meters |
|
187.5kbps |
1000 meters |
|
500kbps |
400 meters |
|
1-1.5Mbps |
200 meters |
|
3-12Mbps |
100 meters |
|
24V DC input power |
|
|
Voltage range |
20.4-28.8V DC |
|
MAX. Current cosume (24VDC) |
70mA |
|
Isolation( Input power with Logic circuit) |
500V |
|
Power Supply consume |
|
|
5V DC consume on BUS |
150mA |
|
Dimension (length x width x hight) |
71 x 80 x 62 |

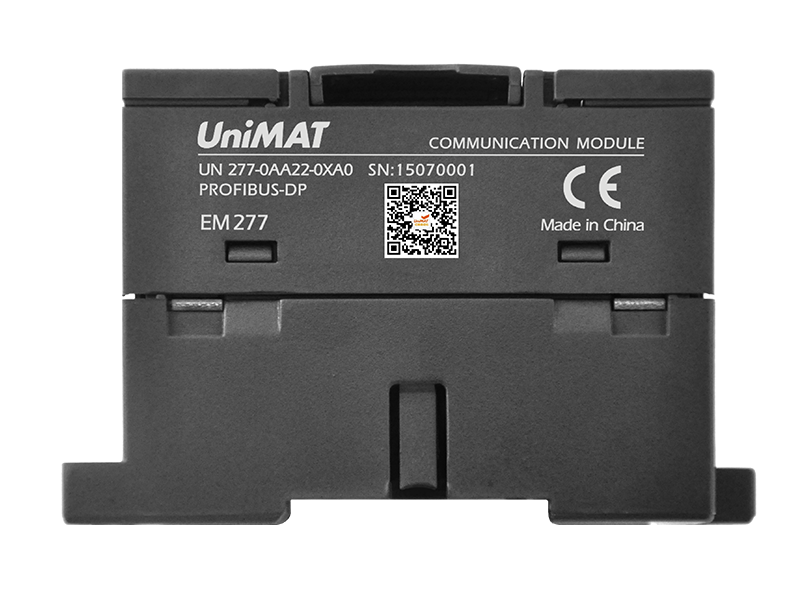

EM277 PROFBUS-DP Module
20 years experience
3-year warranty
Support free sample test
