Technical Parameters

model

EM AQ02

order number

UN 288-3AQ02-0AA0

conventional

Dimensions W x H x D (mm)

45 x 100 x 81

weight

147.1g

power consumption

1.5 W (no load)

Current Consumption (SM Bus)

60 mA

Current consumption (24 V DC)

50 mA (no load)

analog output

Output

2

type

voltage or current

scope

±10V or 0 ~ 20mA

resolution

Voltage mode: 11 bits + sign bit
    Current mode: 11 bits

Full-Scale Range (Data Words)

Voltage: -27,648 ~ 27,648

Accuracy ( 25˚C /0 ~ 55˚C )

±0.5 %/ ±1.0 % of full scale

Output status in STOP mode

previous value or replacement value (default is 0)

Isolation (field side and logic side)

none

Cable length (maximum)

100 m, shielded twisted pair

diagnosis

overflow/underflow

Short to ground (voltage mode only)

Open Circuit (Current Mode Only)

24 V DC low voltage

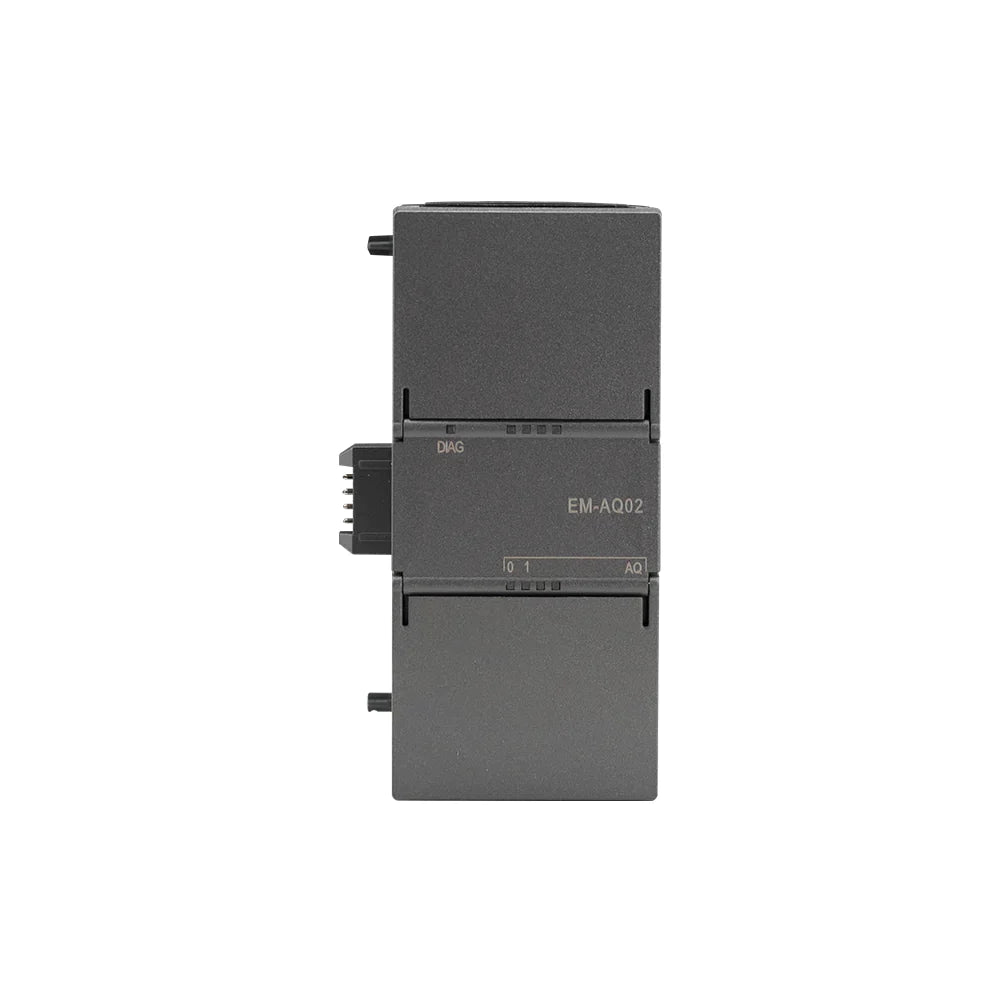

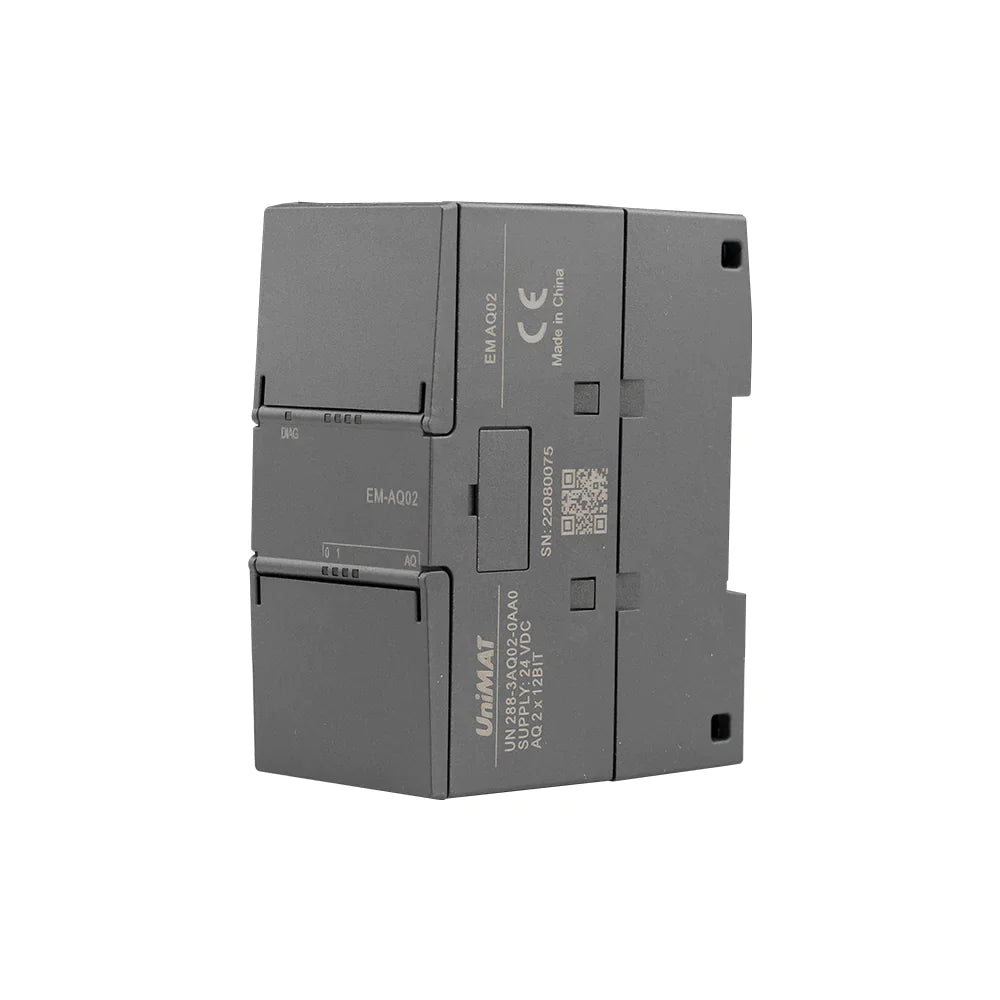

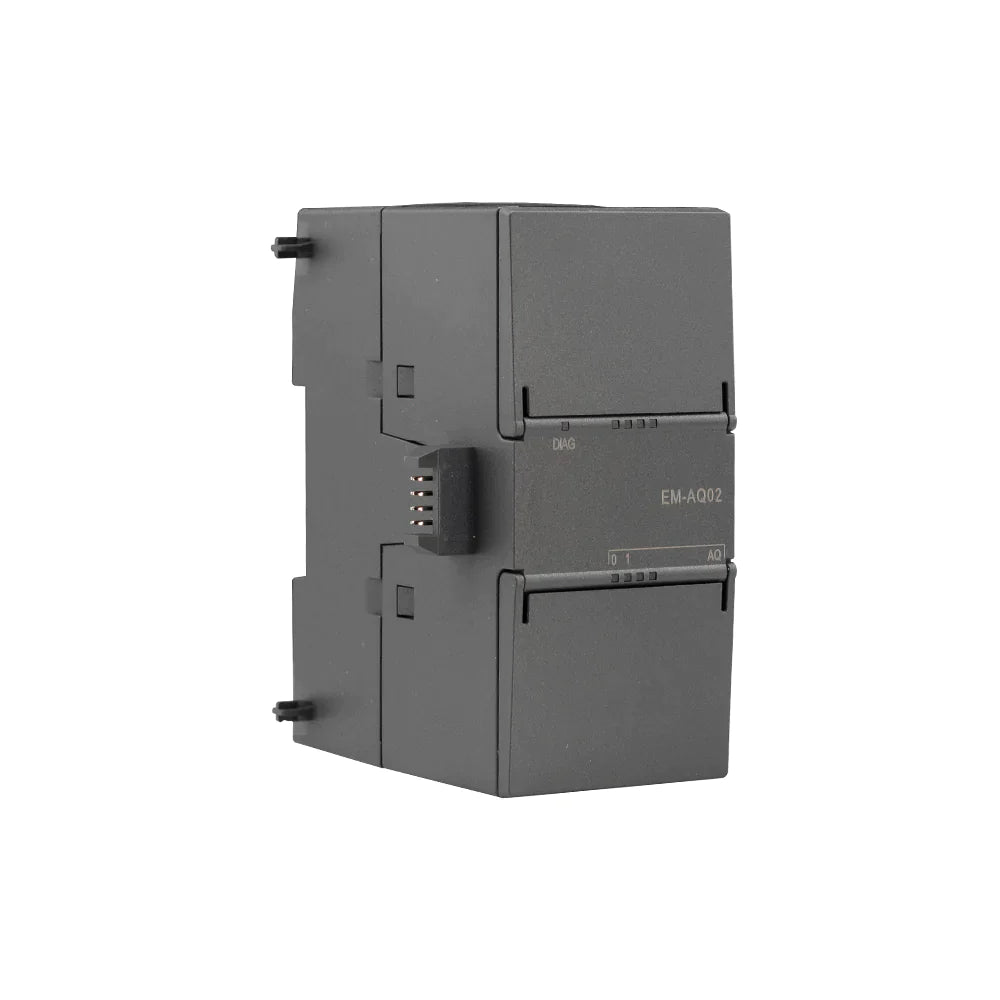

Side View
