model
Heading

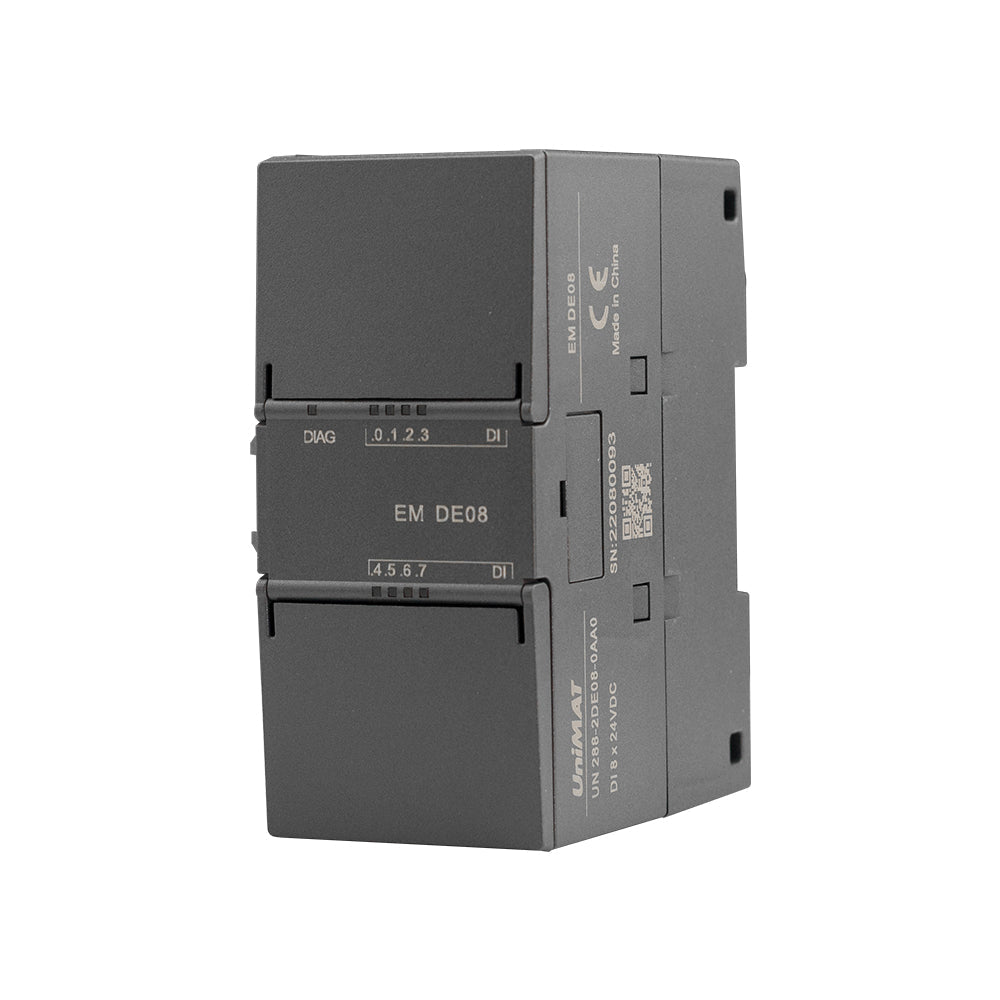

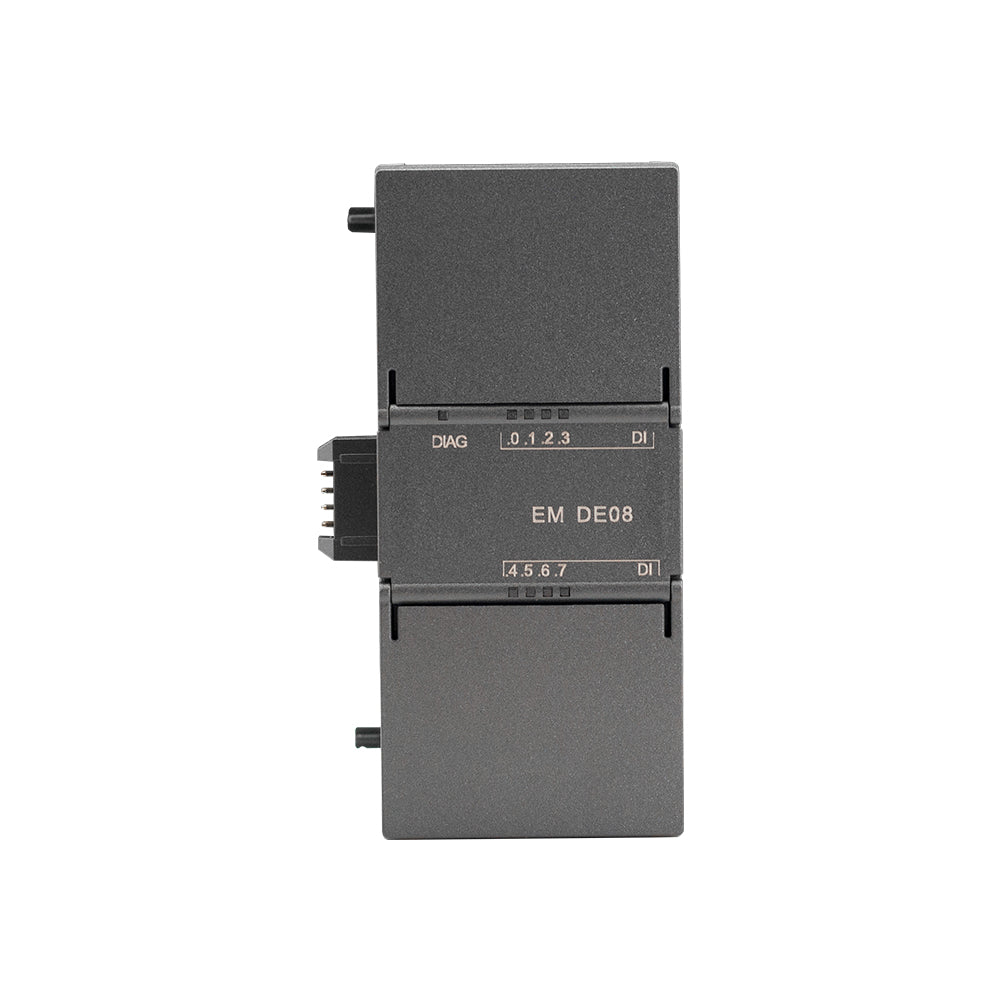

EM DE08
order number
UN 288-2DE08-0AA0
conventional
Dimensions W x H x D (mm)
45 x 100 x 81
power consumption
1.5W
Current Consumption (SM Bus)
105 mA
Current consumption (24 V DC)
4 mA per point input used
digital input
Input electricity
8
type
sink/source
Rated voltage
24 V DC at 4 mA, nominal
Allowable continuous voltage
30 V DC max.
surge voltage
35 V DC for 0.5 s
Logic 1 signal (minimum)
15 V DC at 2.5 mA
Logic 0 signal (maximum)
5 V DC at 1 mA
Isolation (field side and logic side)
500 V DC for 1 min
isolation group
2
Simultaneously connected inputs
8
cable length
500m (shielded), 300m (unshielded)

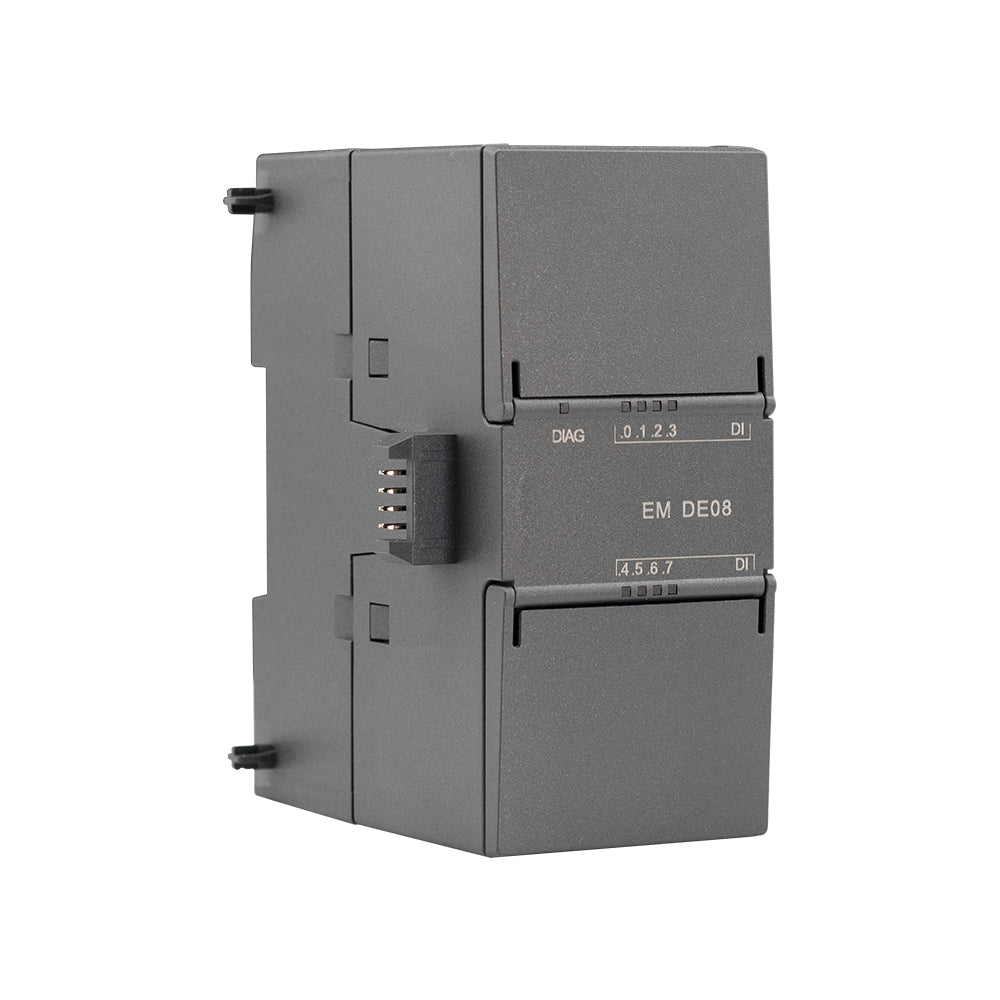

Side View
Dimensions (mm)
Wiring Diagram
