4 digital input,24V DC/4 digital output, 24V DC,
Transistor output, opto-couplers isolation,
Strong anti-interference performance, stable
EM123 4DI/4DO Transistor
Model No.
EM123 4DI/4DO Transistor
Order No.
UN 123-1BF22-0XA0

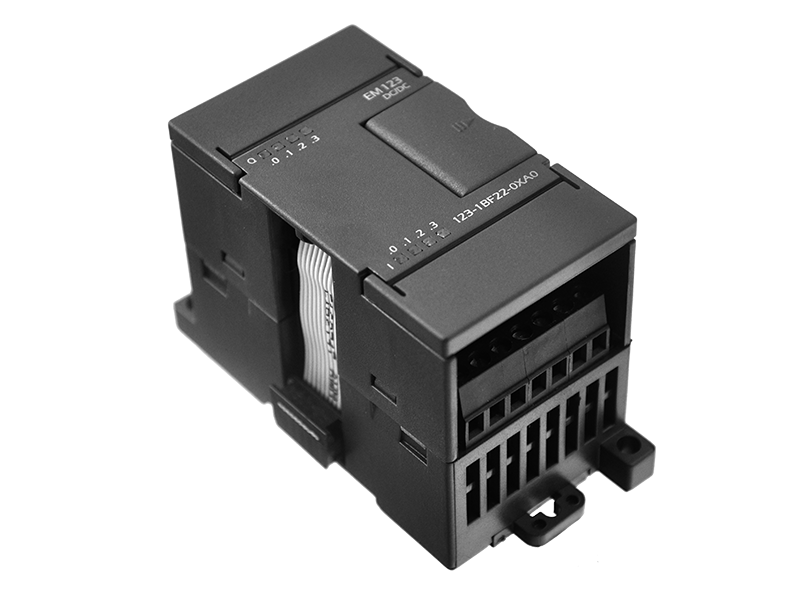

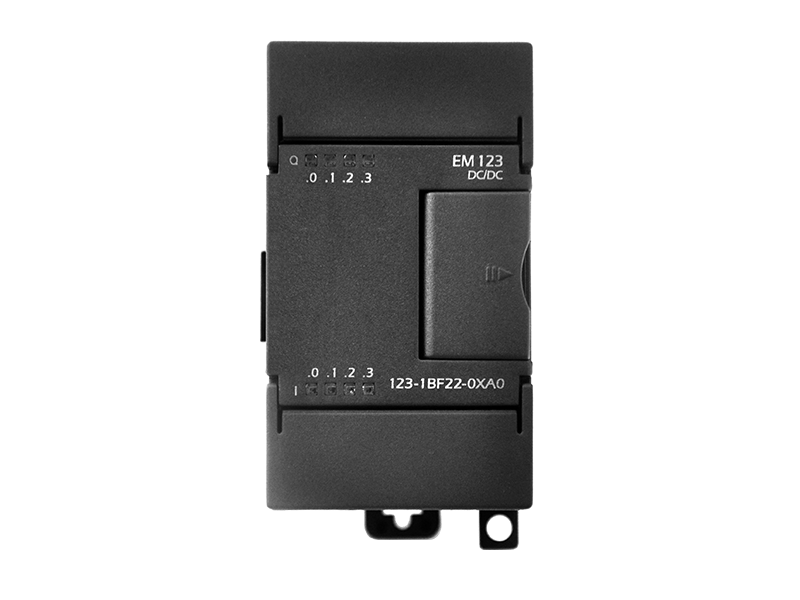

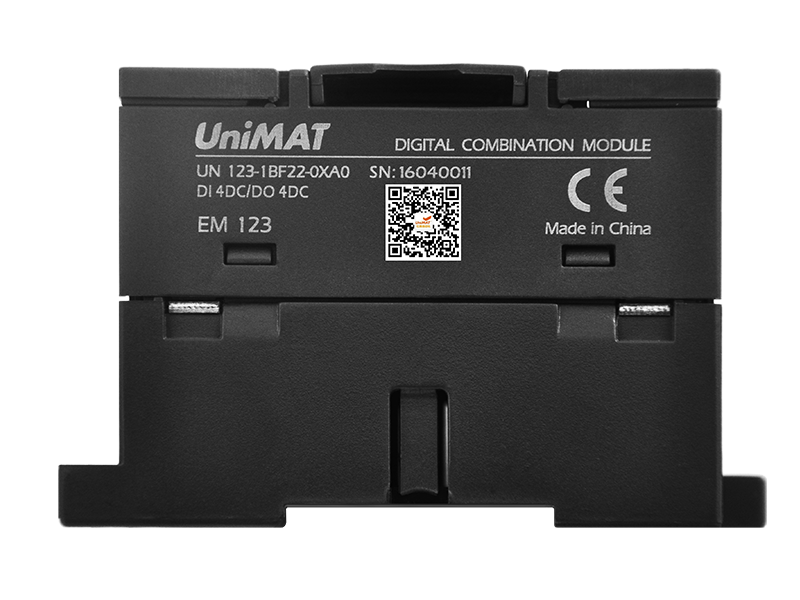

Side View
technical parameters
|
Product Description |
4DI,24VDC/4DO,24VDC Transistor; Optical isolation with high immunity |
|
From bus current consumption |
40mA |
|
Power loss |
2W |
|
Input Features |
|
|
Number of digital inputs |
4 |
|
Input voltage |
24V DC,4mA |
|
Logic 0 signal |
0~5V DC |
|
Logic 1 signal |
15~30V DC |
|
Maximum Input Delay Time |
4.5ms |
|
Signal input type· |
PNP/NPN |
|
Optical isolation(Galvanic) (field to logic) |
500 VAC for 1 minute |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
300m |
|
output Features |
|
|
Number of digital outputs |
4 |
|
Output type |
Transistor |
|
Isolation |
Optical coupler |
|
Output voltage |
24V DC |
|
Output voltage range |
20.4~28.8V DC |
|
Output Current |
0.75A |
|
Lamp load |
5W |
|
Lifetime mechanical |
/ |
|
Lifetime contacts(Rated load voltage |
/ |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
150m |
|
Dimensions(W x H x D)(mm) |
46×80×62 |
