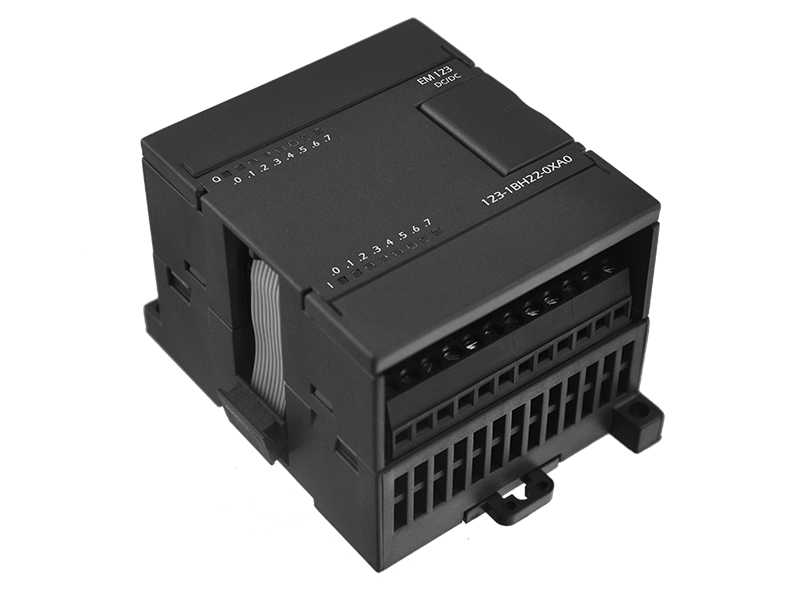

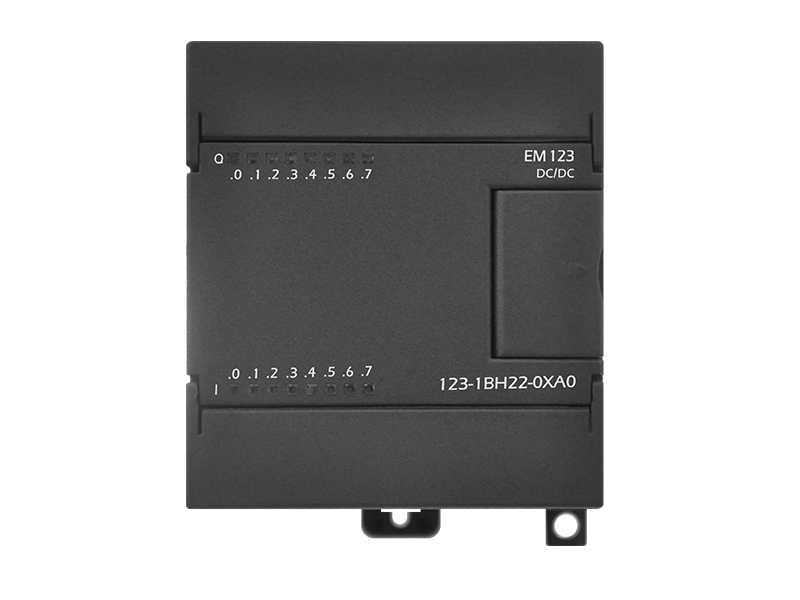

EM123 8DI 24V/8DO Transistor

8 digital input,24V DC/8 digital output, 24V DC,

Transistor output, opto-couplers isolation,

Strong anti-interference performance, stable

Model No.

EM123 8DI 24V/8DO Transistor

Order No.

UN 123-1BH22-0XA0

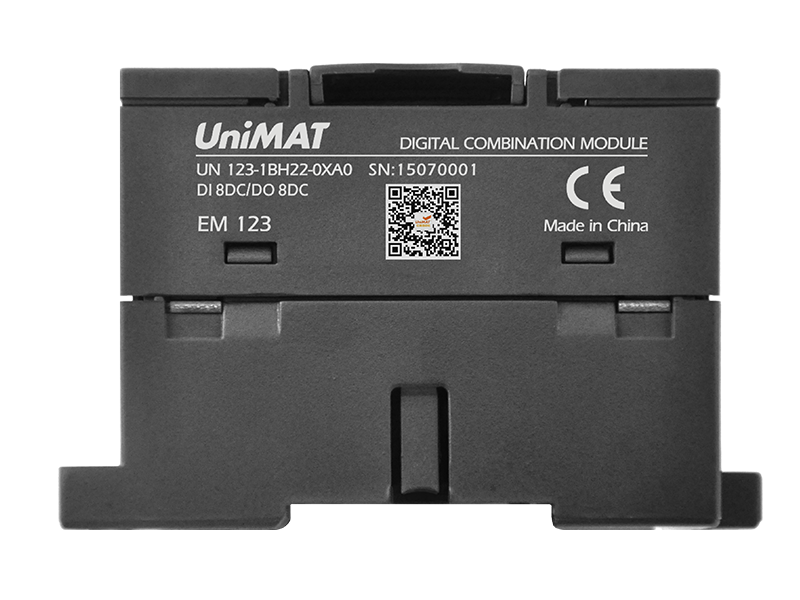

  Side View


  technical parameters




Power consumption



·From +5V DC backplane bus

80mA

·Power loss

3W



Number of digital contact

8

Rated voltage

24V 4mA

·for “0”signal

0~5V DC

·for “1”signal

15~30V DC

Input delay(Max)

4.5ms

Signal input type

PNP/NPN

Isolation tested for contact

500VAC,1Min

Cable length(shielded)

500m

Cable length(unshielded)

300m



Number of digital contact

8

Output type

Transistor

Isolation tested for contact

Optocoupler

Rated voltage

24 VDC

Voltage range

20.4~28.8VDC

Rated voltage

0.75A

Lamp load

5W

Cable length(shielded)

500m

Cable length(unshielded)

150m



Dimensions(W x H x D)(mm)

71.2×80×62

weight

145g



  Wiring diagram
