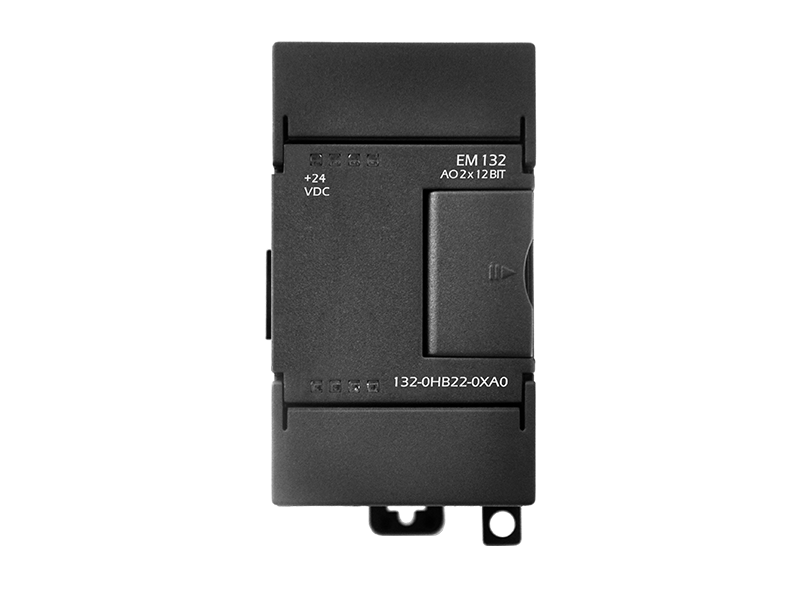

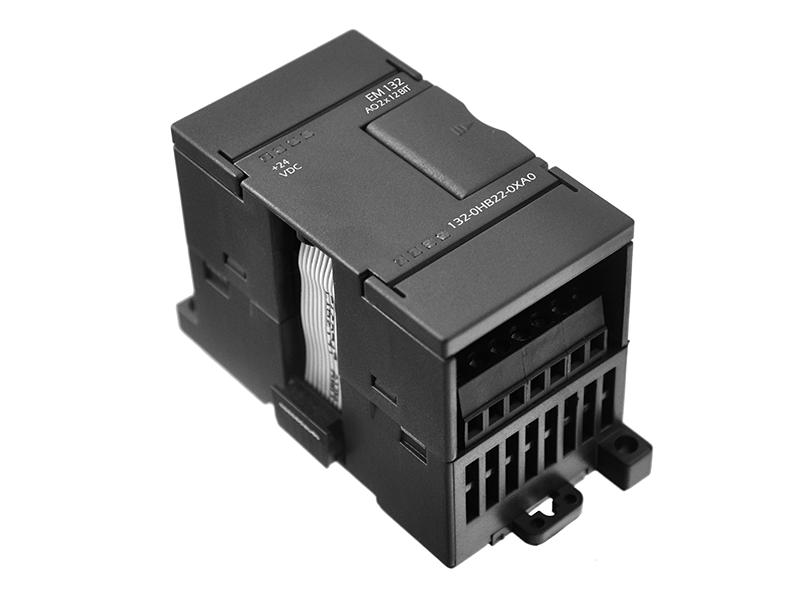

EM132 2AO Voltage/current x12bits

2 analog output,

Resolution Voltage output 12bits, current output 11 bits,

All channels support voltage output and current output, flexible

Model No.

EM132 2AO Voltage/current x12bits

Order No.

UN 132-0HB22-0XA0

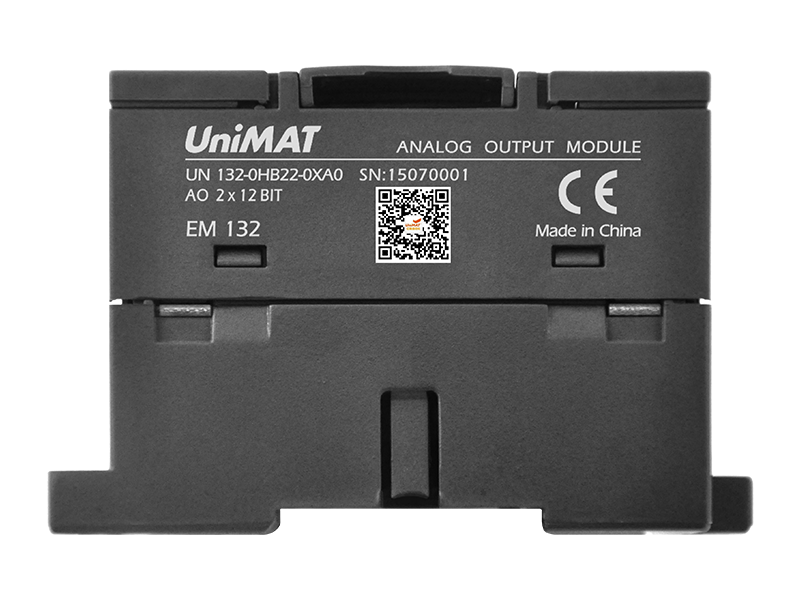

  Side View


  technical parameters




Product Description

2AO; 12 bits resolution voltage output;

11 bits resolution current output

Input Feature

From bus current consumption

20mA

From L+ current consumption

70mA

Power loss

2W

Number of analog Input

2

Input voltage range

-10~+10V

Input current range

0~20mA

Load inpedance



·for voltage outputs

Min:5KΩ

·for current outputs

Max:0.5KΩ

Resolution

12 bits voltage output;

11 bits current output

Data word format



·Displayable:voltage output

-32,000~+32,000

·Displayable:current output

0~32,000

Basic error

±0.5% of full range

Dimensions(W x H x D)(mm)

46×80×62



  Wiring diagram
