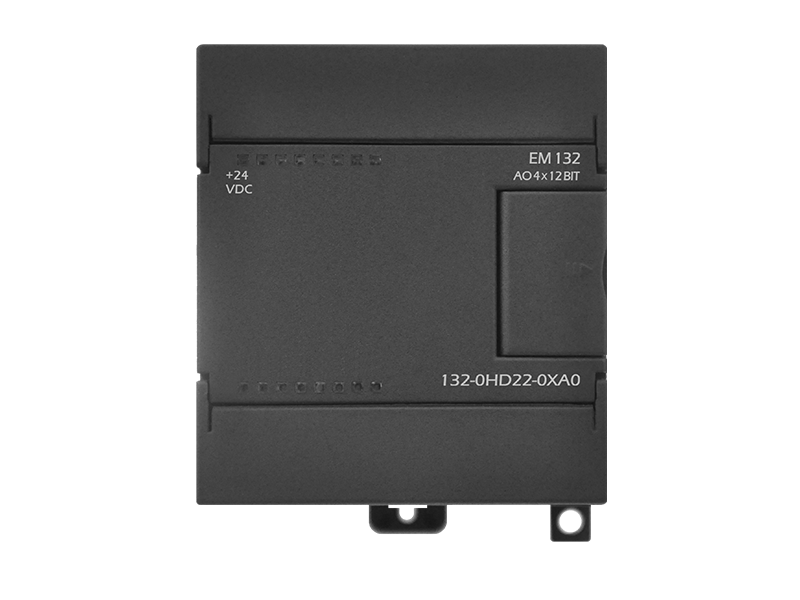

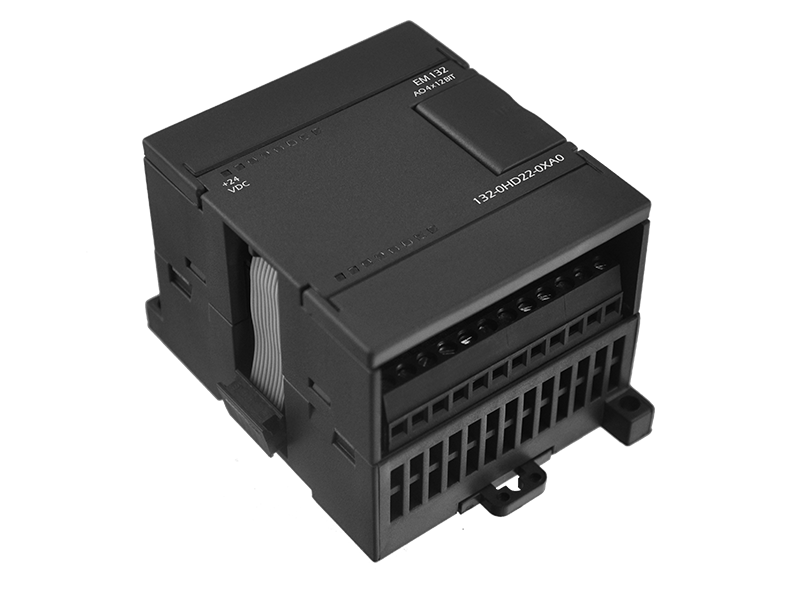

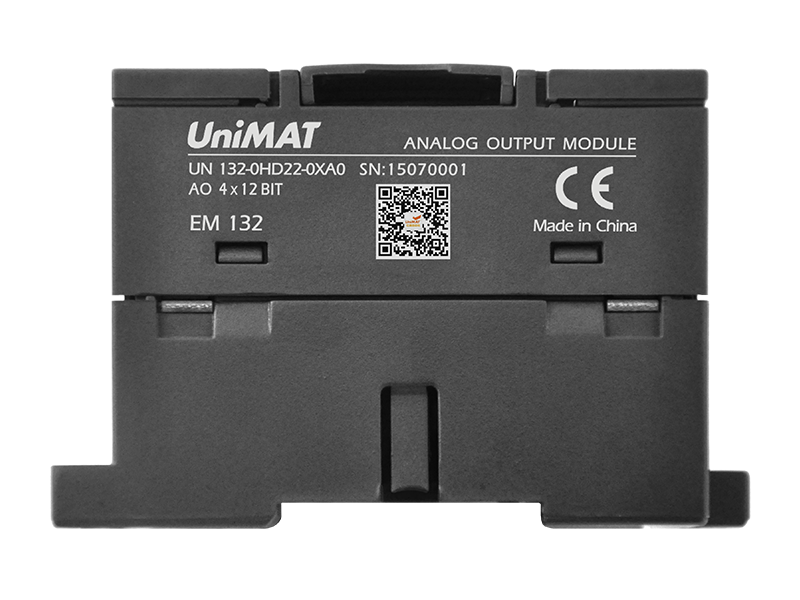

EM132 4AO, voltage/current x 12bits

Enhance your control system's capabilities with the EM132 4AO Voltage/Current x12 bits module. This high-performance analog output module offers four channels of precise analog output, providing exceptional flexibility and control for your industrial applications. Each channel of the EM132 module supports 12 bits of resolution, ensuring accurate and reliable voltage or current signal generation. Whether you need to output voltage signals for precise control or current signals for powering devices, this module can handle both with ease. Its wide output range allows for customization to meet your specific requirements. Designed for industrial environments, the EM132 module offers robust construction, ensuring long-lasting and reliable operation. Integrate the EM132 4AO module into your PLC system and experience enhanced control over your connected devices. Achieve fine-grained and responsive control with this feature-rich module, enabling you to meet the demands of your complex control applications. Elevate your automation capabilities with the EM132 4AO module and unlock a new level of precision in analog output control.

4 analog output,

Resolution Voltage output 12bits, current output 11 bits,

All channels support voltage output and current output, flexible and low cost

Product Description

4AO;Resolution:16bits; 12 bits resolution voltage output;

11 bits resolution current output

Input Feature



From bus current consumption

22mA

From L+ current consumption

92mA

Power loss

2.5W

Output Feature



Number of analog Input

4

Input voltage range

-10~+10V

Input current range

0~20mA

Load inpedance



·for voltage outputs

Min:5KΩ

·for current outputs

Max:0.5KΩ

Resolution

12 bits voltage output;

11 bits current output

Data word format



·Displayable:voltage output

-32,000~+32,000

·Displayable:current output

0~32,000

Basic error

±0.5% of full range

Dimensions(W x H x D)(mm)

71.2×80×62
