UN 153-1AA03-0XB0
$0.00
Unit price
/
Unavailable

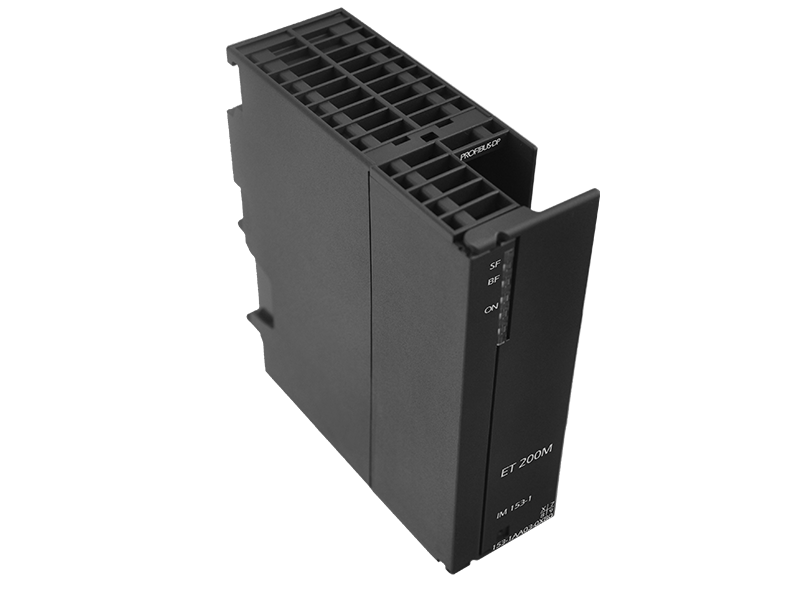

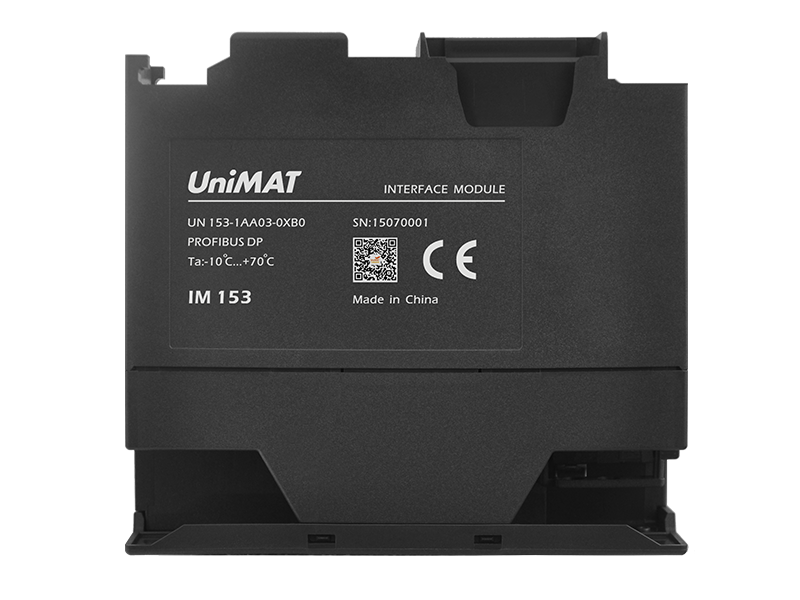

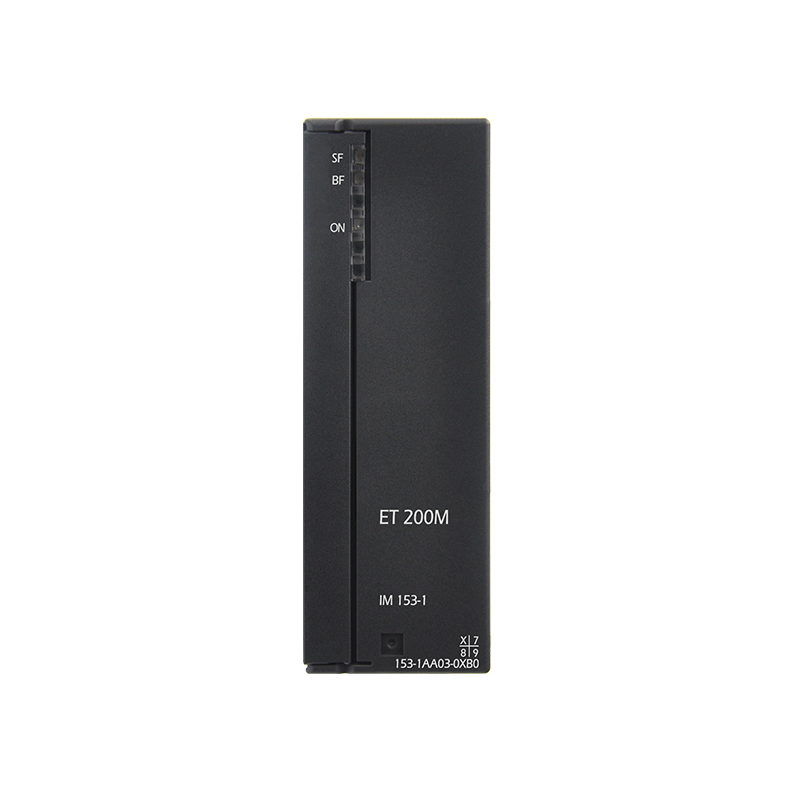

IM153 PROFIBUS - DP 300 Bus PLC Communication Module for 300 series Modules
1). Profibus - DP Interface Module;
2). Used to connect remote I/O Modules ;
3). Each slave station connect 8 UN300 Modules ;
| Model | IM 153 PROFIBUS-DP |
| Product Description | @ Profibus-DP interface module to connect remote I/O modules with Profibus protocol @ Eight UN 300 expasion modules can be used each IM 153-1 |
| Modules characteristic |
|
| Protocol | PROFIBUS-DP |
| Baud rate, Max | 12Mbps Automatic adapt |
| Address space, Max | 128bits input/128bits output |
| Expansion modules, Max | 8 |
| Isolation voltage | 500V |
| Work voltage | 24V DC |
| Current consumption (24V DC) |
625mA |
| Degree of protection | IP20 |
| Operating temprature | -10C~+70C |
| Dimensions (W x H x D)(mm) |
40× 125× 120 |
| Order Number | UN 153-1AA03-0XB0 |
UN 153-1AA03-0XB0
$0.00
Unit price
/
Unavailable
