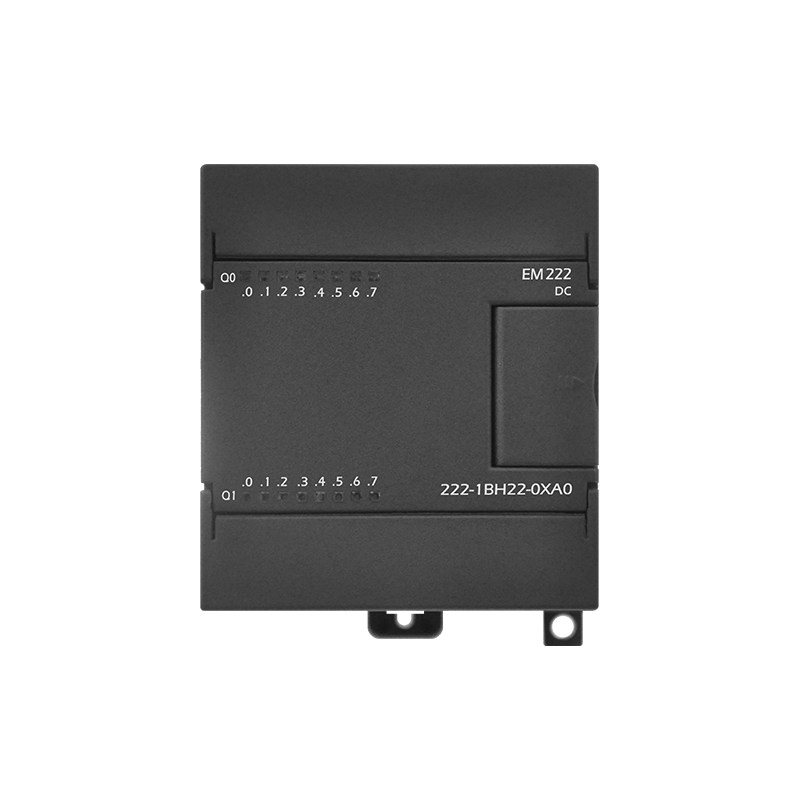

16DO,24V DC,Transistor,Optical isolation with high immunity.
UN 222-1BH22-0XA0
Model No.
EM222 16 outputs
Order No.
UN 222-1BH22-0XA0

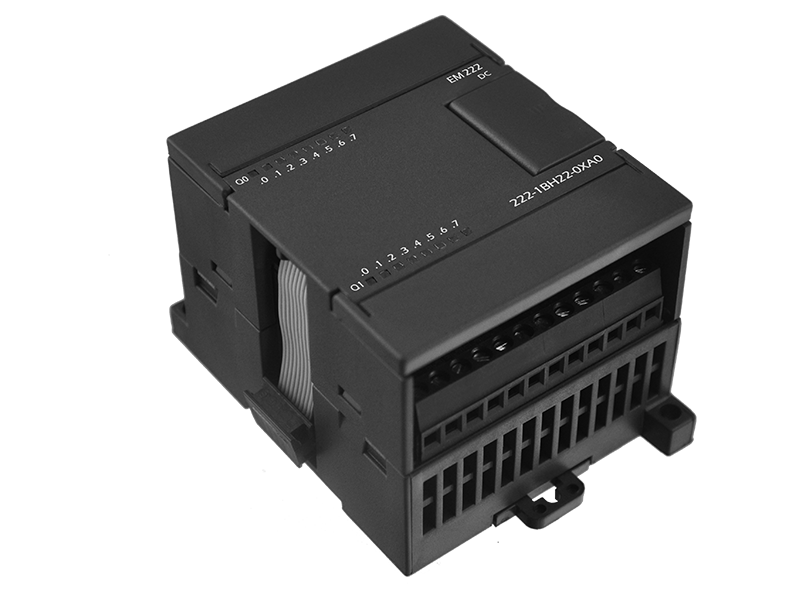

Side View
technical parameters
|
Product Description |
16DO,24V DC;Transistor; Optical isolation with high immunity |
|
The bus current consumption |
110mA |
|
Power loss |
3W |
|
Number of digital outputs |
16 |
|
Signal output type· |
Transistor |
|
Isolation |
Optical coupler |
|
Rated voltage |
24V DC |
|
Permissible voltagerange |
20.4~28.8V DC |
|
Rated current |
0.75A |
|
Lamp load |
5W |
|
Cable Length (Shielded) |
500m |
|
Cable Length(unshielded) |
150m |
|
Switching frequency |
/ |
|
Lifetime contact mechanical |
/ |
|
Lifetime contactmechanical( rated load voltage) |
/ |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
