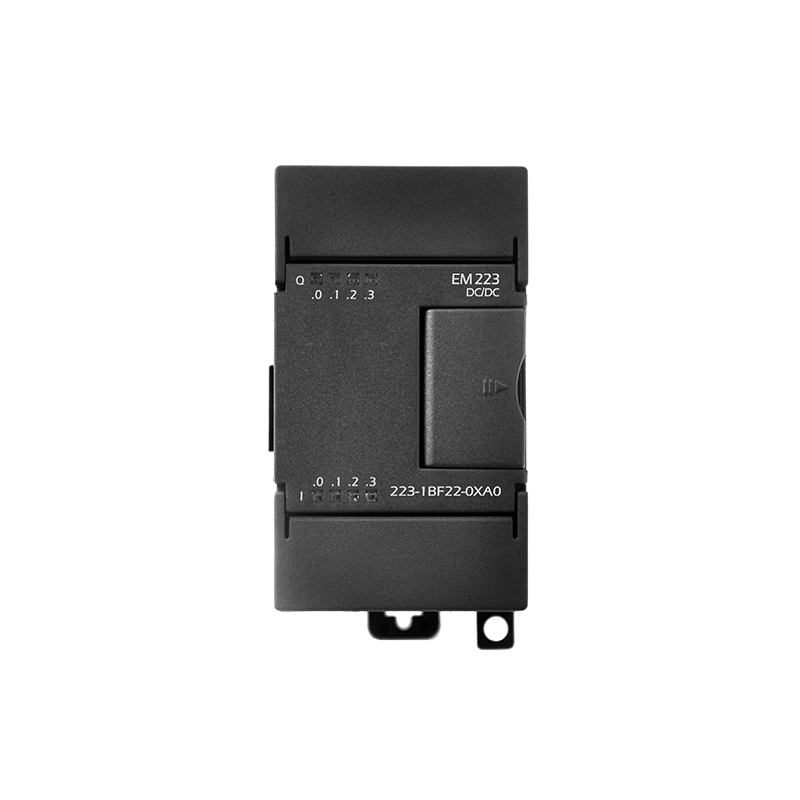

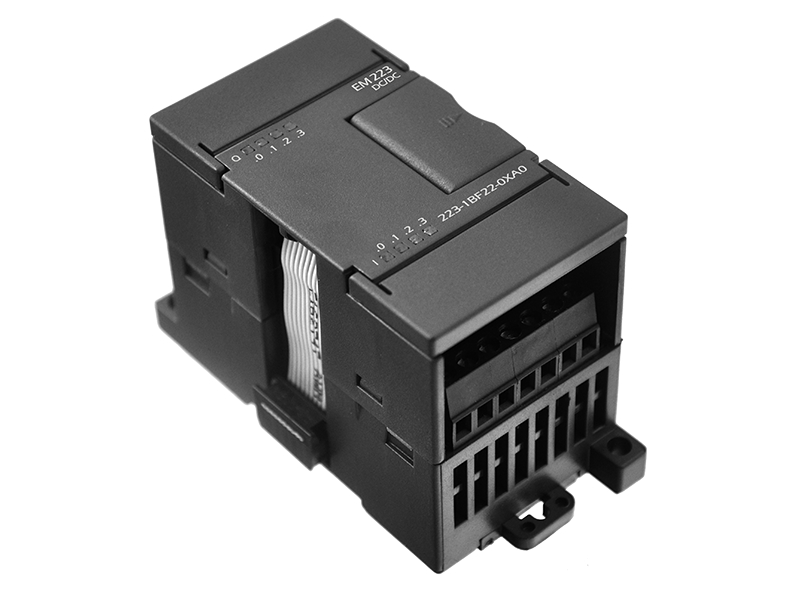

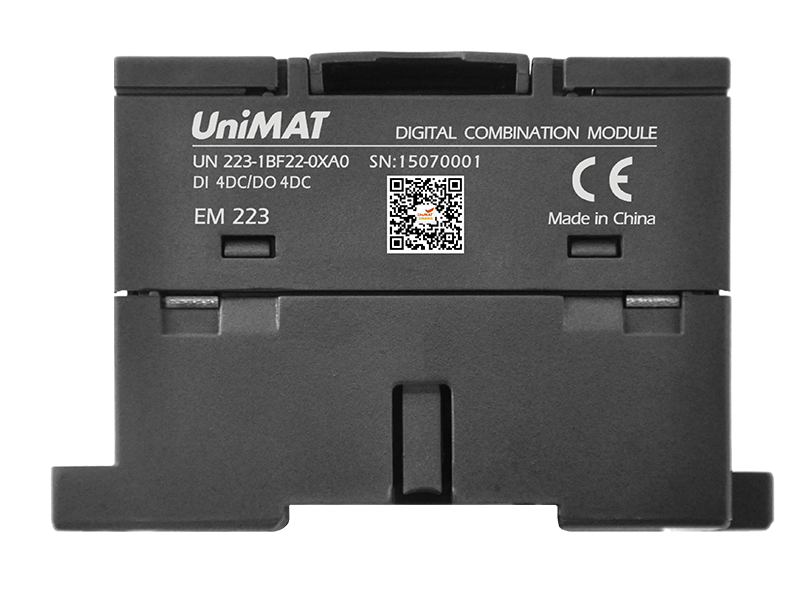

UN 223-1BF22-0XA0


EM 223 4DI / 4DO digital Micro PLC Controller which is compatible with Siemens PLC

1). EM223 4DI / 4 DO ,  24V DC with transistor  ;
2). Compatible with Siemens 6ES7223-1BF22-0XA0 ;
3). Digital Input and Output  module ;
4). Could connect with Siemens 200 CPU ;
5). 3 year warranty ;

Product Description

4DI,24VDC/4DO,24VDC

Transistor;

Optical isolation with high immunity

From bus current consumption

40mA

Power loss

2W

Input Features



Number of digital inputs

4

Input voltage

24V DC,4mA

Logic 0 signal

0~5V DC

Logic 1 signal

15~30V DC

Maximum Input Delay Time

4.5ms

Signal input type·

PNP/NPN

Optical isolation(Galvanic) (field to logic)

500 VAC for 1 minute

Cable Length (Shielded)

500m

Cable Length (unshielded)

300m

output Features



Number of digital outputs

4

Output type

Transistor

Isolation

Optical coupler

Output voltage

24V DC

Output voltage range

20.4~28.8V DC

Output Current

0.75A

Lamp load

5W

Lifetime mechanical

/

Lifetime contacts(Rated load voltage

/

Cable Length (Shielded)

500m

Cable Length (unshielded)

150m

Dimensions(W x H x D)(mm)

46×80×62
