8DI,24VDC/8DO, 24 VDC/250VAC,
Relay isolation with high immunity.
UN 223-1PH22-0XA0
Model No.

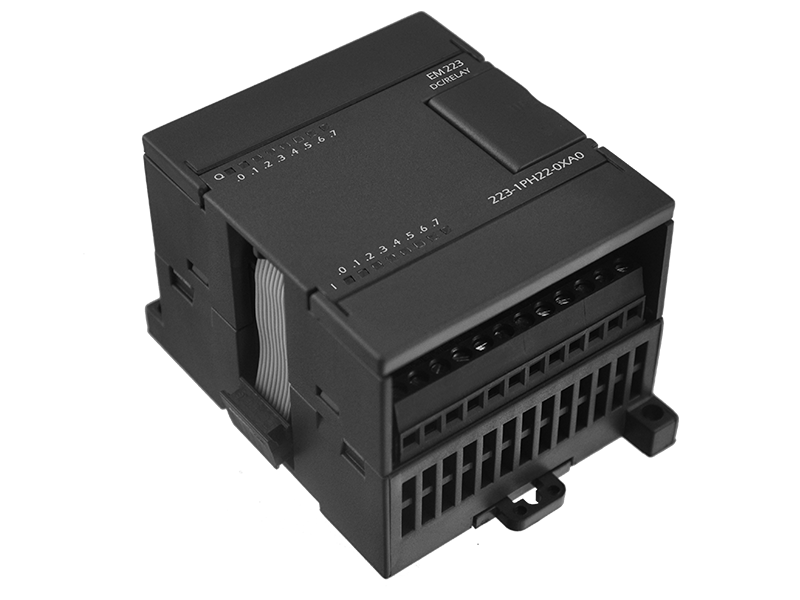

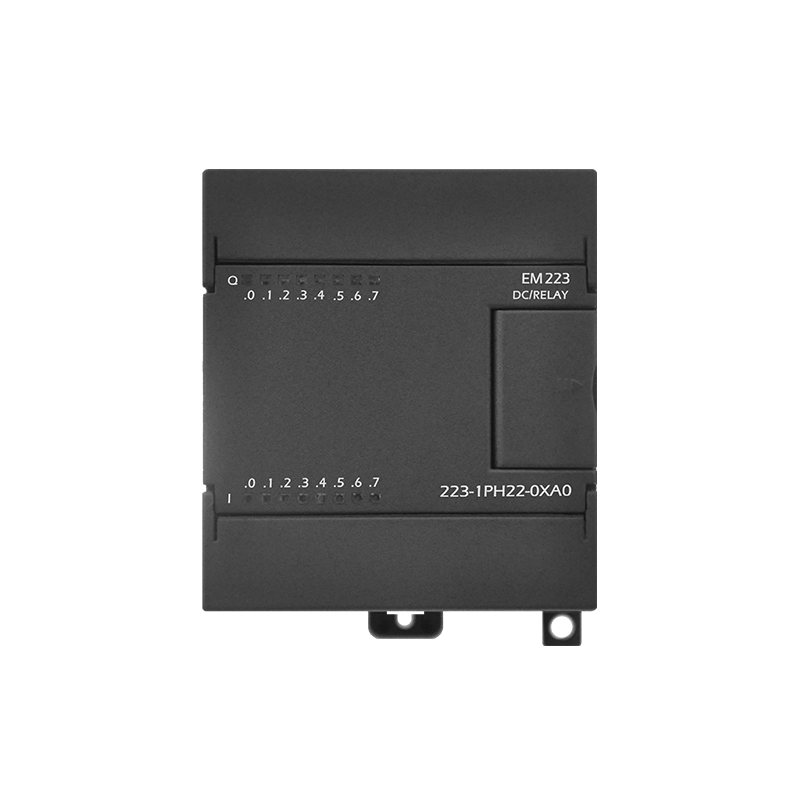

EM223 8 inputs/outputs Relay
Order No.
UN 223-1PH22-0XA0
Side View
technical parameters
|
Product Description |
8DI,24VDC/8DO, 24 VDC/250VAC, Relay isolation with high immunity. |
|
From bus current consumption |
80mA |
|
Power loss |
3W |
|
Digital Input Specification |
|
|
Number of digital inputs |
8 |
|
Input voltage |
24 VDC,4mA |
|
Logic 0 signal |
0~5 VDC |
|
Logic 1 signal |
15~30 VDC |
|
Maximum Input Delay Time |
4.5ms |
|
Signal input type· |
PNP/NPN |
|
Optical isolation(Galvanic) |
500 V AC for 1 minute |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
300m |
|
Digital Output Specification |
|
|
Number of digital outputs |
8 |
|
Output type |
Relay |
|
Isolation |
Relay |
|
Output voltage |
24 VDC |
|
Output voltage range |
5~30 VDC/20~250V AC |
|
Output Current |
2.0A |
|
Lamp load |
30W DC/20~250W AC |
|
Lifetime contact mechanical |
10,000,000 |
|
Lifetime contact mechanical (rated load voltage) |
100,000 |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
150m |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
