UN 222-1BF32-0XB0
$0.00
Unit price
/
Unavailable

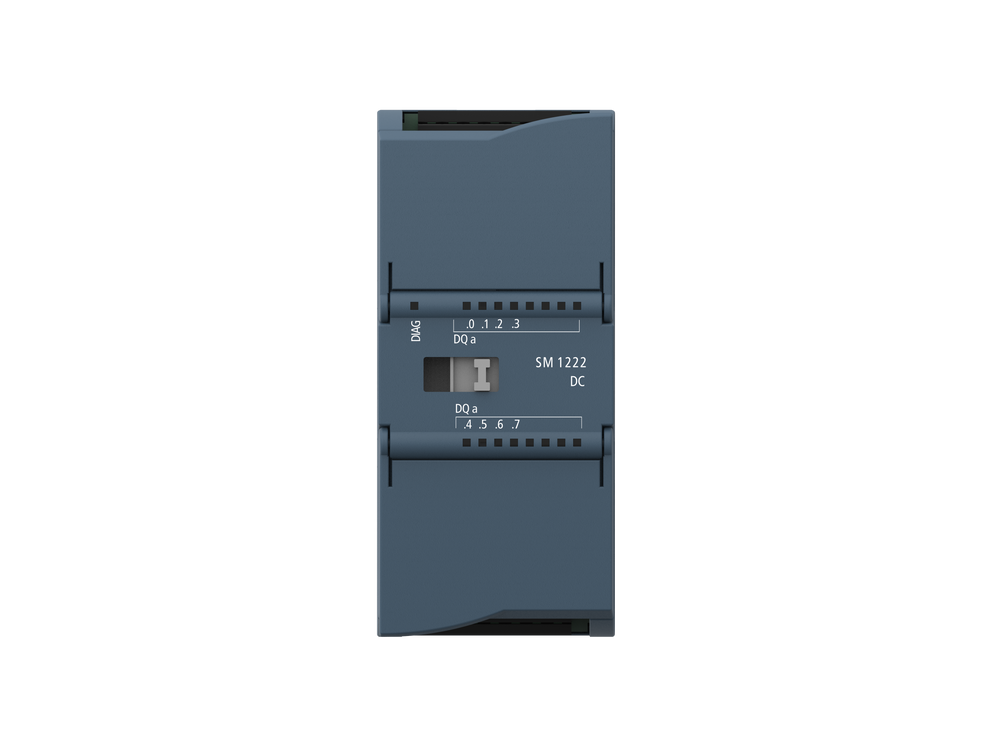

SM 1231 Digital output 1200PLC Module which is similar as Siemens S7-1200 PLC
1) SM 1222 Digital output, 8 DO 24V DC
2) Compatible with Siemens 6es7 222-1BF32-0XB0
3) Digital module;
4) Could connect with Siemens 1200 CPU and Modules;
5) 3-year warranty;
6) 2-3 working days after payment can ship;
7) Material: ABS, IC
| Model | SM 1222 DQ 8×RLY | |||
| Order number | UN 222-1HF32-0XB0 | |||
| General | ||||
| Dimension W x H x D ( m m ) | 45x100×75 | |||
| Weight | 190g | |||
| Power consumption | 4.5 W | |||
| Current consumption (24VDC) | 7 mA per relay coil used | |||
| Current consumption (SM bus) | 120 mA | |||
| Digital output | ||||
| Output points | 8 | |||
| Voltage range | 5 - 3 0 V D C or 5 - 2 5 0 V A C | |||
| Type | Relay, dry contact | |||
| Logic 1 signal at maximum current | ---- | |||
| Logic 0 signal with 10 KQ load | ---- | |||
| Current (maximum) | 2.0A | |||
| Lamp load | 30 W DC/200 WAC | |||
| On-state contact resistance | 0.2 Ω maximum for new equipment | |||
| Leakage current per point | --- | |||
| Inrush current | 7A with contacts closed | |||
| Overload protection | None | |||
| Isolation (field side and logic side) | 1500VAC (coil and contacts)None (coil and logic side) | |||
| Isolation group | 2 | |||
| Current per common terminal (maximum) | 10 A | |||
| Inductor clamping voltage | - | |||
| Switching delay |
Maximum 10 ms |
|||
| Mechanical life (no load) | 10,000,000 open/close cycles | |||
| Contact life under rated load | 100,000 open/close cycles | |||
| Behavior during RUN -STOP | Previous value or replacement value (default value is 0) | |||
| Number of outputs switched on simultaneously |
8 |
|||
| Cable length (meter) | 500(shielded);150(unshielded) | |||
