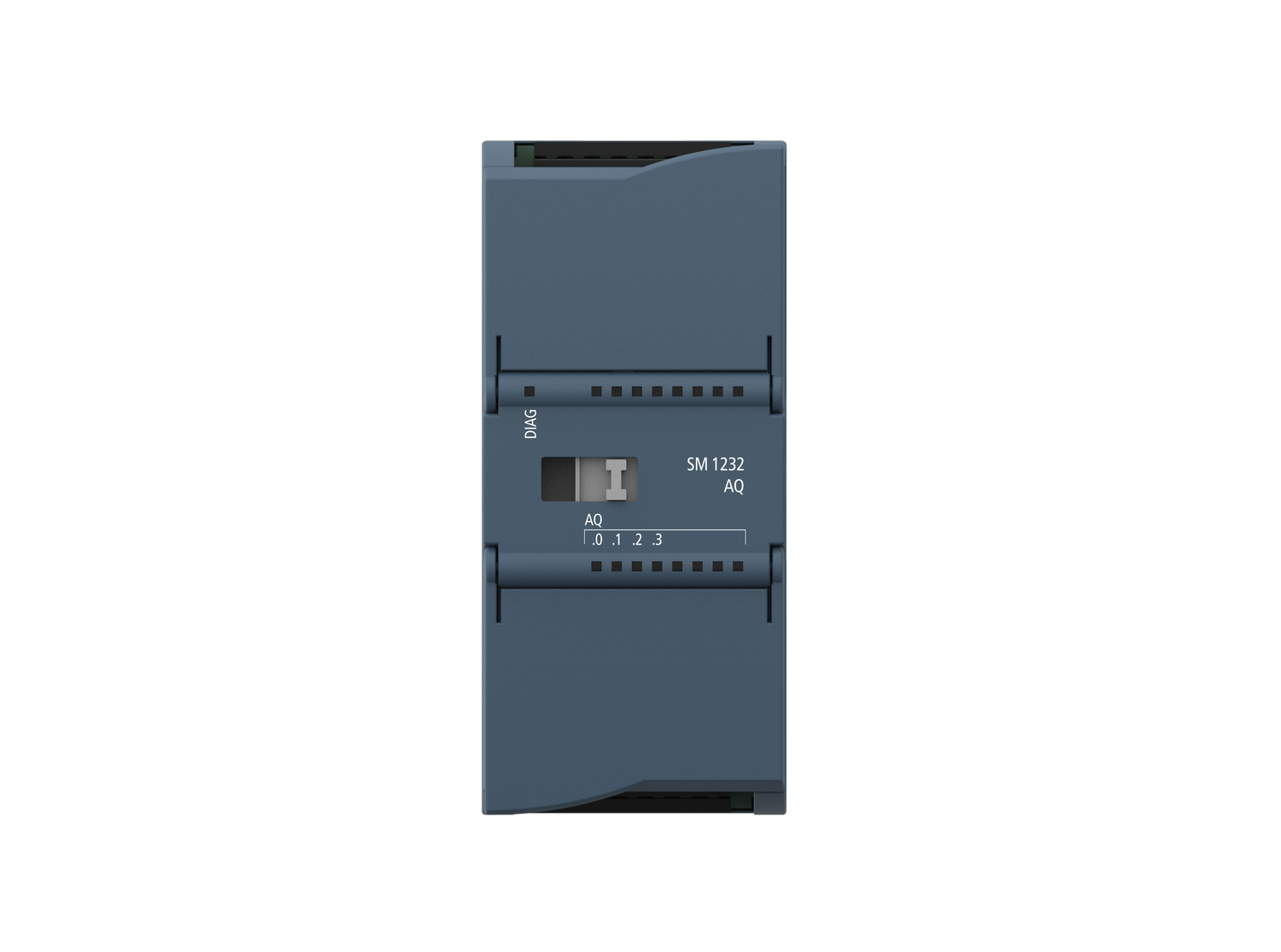

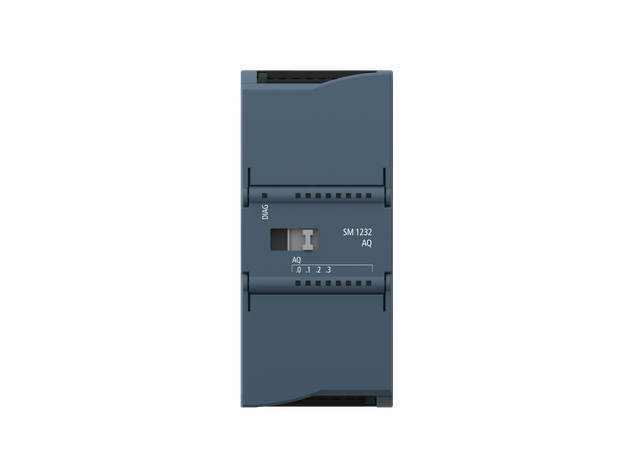

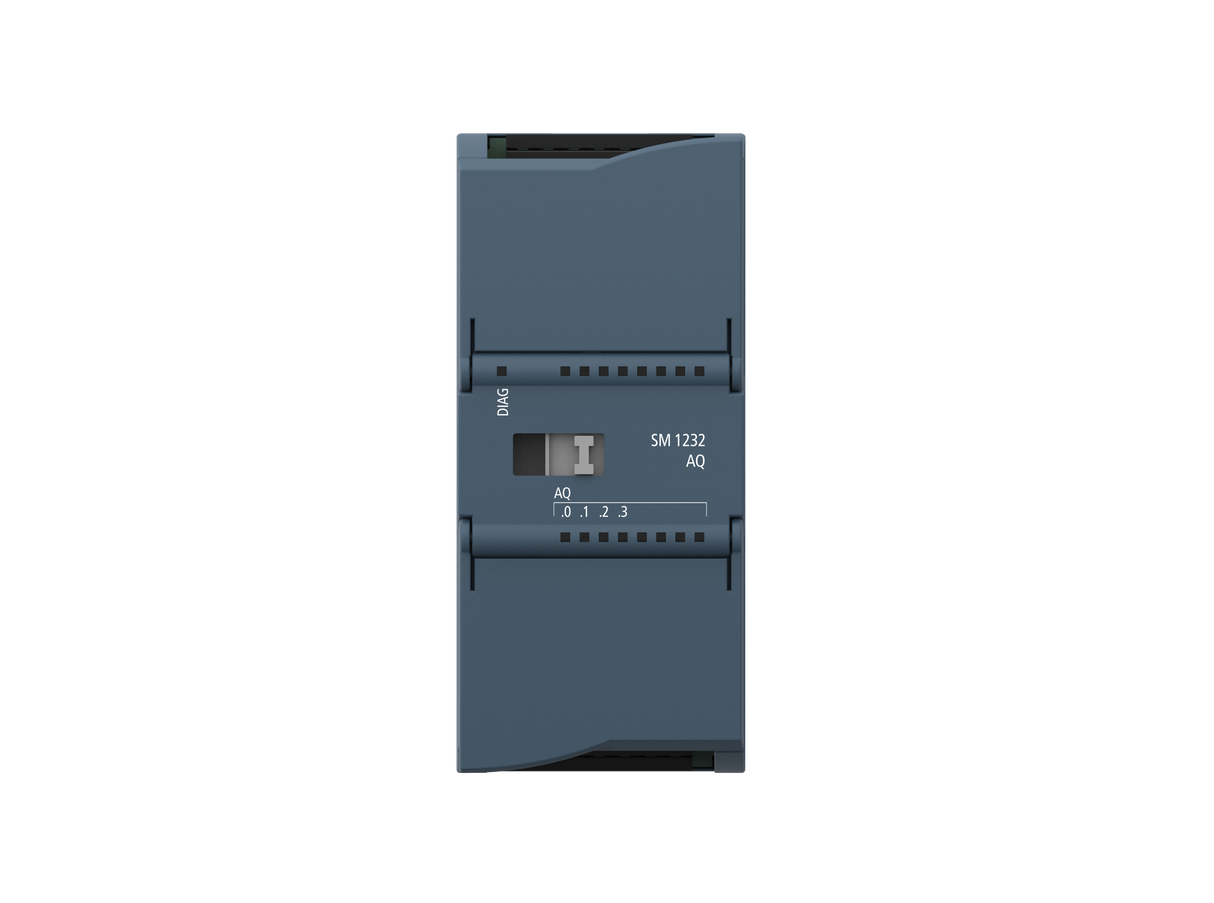

UN 232-4HD32-0XB0


SM 1232 4AO 1200PLC Module which is similar as Siemens S7-1200 PLC

1) SM 1232 4AO,
2) Compatible with Siemens 6es7 232-4HD32-0XB0
3) analog module;
4) Could connect with Siemens 1200 CPU and Modules;
5) 3-year warranty;
6) 2-3 working days after payment can ship;
7) Material: ABS, IC


Model SM 1232  4AO x24V DC
Order number UN232-4HD32-0BAX0
General
Dimension W x H x D ( m m ) 45×100×75
Weight 210 g
Power consumption 2.5 W
Current consumption (SM bus) 130 mA
Current consumption (24VDC) Each point input used is 4mA
Analog input
Enter points 4 AO
Type Sink/Source type (IEC Class 1 sink type)
Rated voltage 24VDC at 4mA, rated value
Allowed continuous voltage Maximum 30V DC
Surge voltage 35VDC, lasting 0.5
Logic 0 signal (minimum) 2. 15V DC at 5mA
Logic 1 signal (maximum) 5 V DC  at  1 mA
Isolation (field side and logic side) 707V DC(Type test)
Isolation group  4
Filter time 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8 ms (selectable, 4 in a group)
Number of inputs connected simultaneousl 16
Cable length (meter) 500 (shielded);300 (unshielded)
