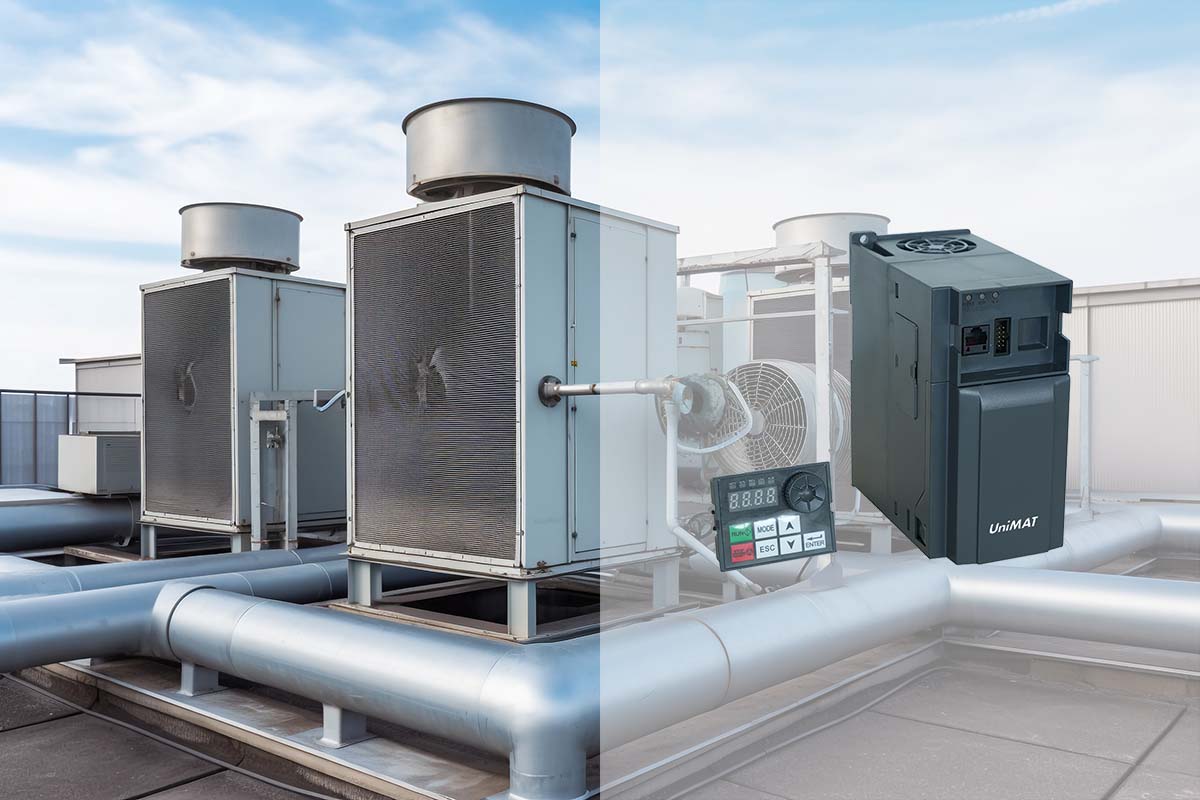

If you work in building management or HVAC,you've likely heard the term VFD.But what exactly is a VFD in HVAC,and why is it so crucial for modern systems?A VFD in HVAC—or Variable Frequency Drive—is an electronic device that controls the speed of an electric motor by varying the frequency and voltage of its power supply.By intelligently matching motor speed to the exact demand of the system,a VFD in HVAC units is a powerhouse for slashing energy costs,improving control,and extending equipment life.
This article will break down how VFDs work,their significant benefits,and where you'll find them in everyday HVAC applications.
How Does a VFD Work in an HVAC System?
At its core,an HVAC system is designed to maintain comfort by moving air and water.Traditionally,fans,pumps,and compressors operated at a constant speed,using mechanical methods like dampers and valves to restrict flow—a highly inefficient process akin to controlling your car's speed by riding the brake while keeping your foot flat on the accelerator.
A VFD in HVAC system revolutionizes this.It sits between the electrical supply and the motor of a component like a fan or pump.Here’s a simple breakdown of its operation:
- Conversion:The VFD first converts the incoming AC(Alternating Current)power into DC(Direct Current)power.
- Smoothing:The DC power is smoothed and filtered.
- Inversion:The VFD then inverts the DC power back into AC power.Crucially,it uses sophisticated microprocessor technology to precisely control the frequency(measured in Hertz-Hz)and voltage of the output power.
The fundamental principle is known as the Affinity Laws:
- Reducing a motor's speed by 20%can reduce its energy consumption by nearly 50%.
- This is because the power a motor uses is proportional to the cube of its speed(Power≈Speed³).
By only running a motor as fast as needed to meet the real-time heating or cooling load,a VFD in HVAC systems eliminates massive energy waste.
Key Benefits of Using a VFD in HVAC
Integrating a VFD in HVAC design isn't just a minor upgrade;it's a transformative efficiency solution.The primary advantages include:
1.Massive Energy Savings
This is the most significant benefit.VFDs reduce the electrical consumption of the largest energy-users in a building—the fans and pumps.Facilities can see energy savings of 20-60%on these components,leading to a substantial reduction in utility bills and a quick return on investment(ROI).
2.Improved Process Control and Comfort
Systems with constant-speed motors often suffer from temperature swings and imprecise control.A VFD in HVAC allows for smooth,continuous modulation of motor speed.This results in:
- More consistent temperature and humidity control.
- Reduced drafts and noise from air distribution systems.
- Stable pressure in water systems.
3.Reduced Mechanical Stress and Extended Equipment Life
A VFD provides a"soft start"capability,gradually ramping a motor up to operating speed instead of subjecting it to a sudden,high-inrush electrical current and mechanical torque.This dramatically reduces wear and tear on belts,bearings,gears,and the motor itself,leading to fewer breakdowns and a longer lifespan for major equipment.
4.Lower Maintenance Costs
With reduced mechanical stress comes less frequent maintenance.Components last longer,and the need for emergency repairs is minimized.
5.Power Factor Correction
VFDs can improve the power factor of a system.A poor power factor can lead to utility penalties from power companies.VFDs help avoid these fees by optimizing how efficiently the motor uses electrical power.
Common Applications of VFDs in HVAC Systems
You will most commonly find a VFD in HVAC applications on:
- Chiller and Boiler Pumps:Controlling the speed of condenser and chilled water pumps based on system demand.
- Cooling Tower Fans:Modulating fan speed to maintain precise condenser water temperature based on the outdoor conditions.
- Air Handling Unit(AHU)Fans:Varying the fan speed to maintain constant static pressure in the ductwork as dampers in VAV(Variable Air Volume)boxes open and close.
- VAV Supply Fans:The quintessential application,where the VFD adjusts the fan speed to provide exactly the amount of air needed by the building zones.
- Exhaust Fans:Controlling exhaust fan speed to maintain building pressure or specific environmental conditions(e.g.,in a lab).
Important Considerations When Using a VFD in HVAC
While powerful,VFDs require proper application:
- Motor Compatibility:Not all motors are designed to be run by VFDs.It's essential to use inverter-duty or VFD-rated motors,which are built to handle the voltage stresses a VFD can create.
- Harmonic Distortion:VFDs can create electrical"noise"(harmonics)on the power line,which may interfere with other sensitive equipment.This often requires mitigation strategies like harmonic filters.
- Proper Programming and Setup:A VFD must be correctly programmed for its specific application(e.g.,set to maintain a specific pressure or temperature)to realize the full benefits.
Conclusion:The VFD is an HVAC Essential
So,what is a VFD in HVAC?It is far more than a simple component;it is the brain behind motor operation,enabling unparalleled efficiency,precise control,and significant cost savings.In an era focused on sustainability and reducing operational expenses,the VFD in HVAC systems has transitioned from a luxury to a standard,essential technology for any modern,high-performing building.Whether in a new construction project or a retrofit of an existing system,installing a VFD is one of the most effective steps to take for immediate and long-term benefits.
