If you manage a commercial building,industrial facility,or even a large irrigation system,you've likely heard the term"VFD"and wondered,what is VFD in water pumps?VFD,or Variable Frequency Drive,is a technological game-changer that transforms how pumps operate,leading to massive energy savings and unparalleled control.
This comprehensive guide will explain exactly what a VFD is,how it works with water pumps,and why it might be one of the most valuable investments you can make for your pumping systems.
What Does VFD Stand For?

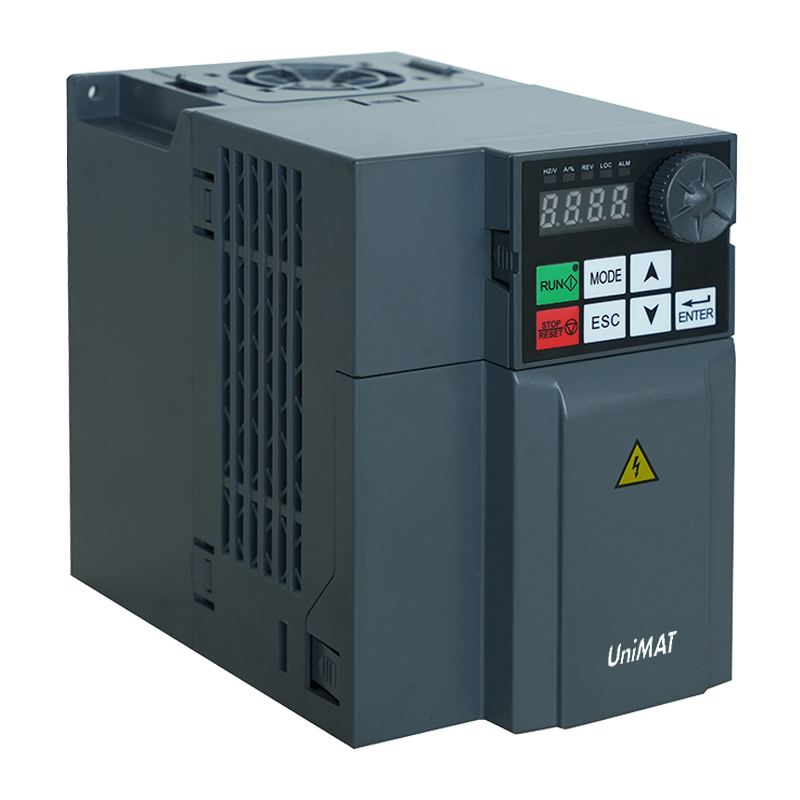

VFD stands for Variable Frequency Drive.It's an electronic device that controls the speed and torque of an AC(Alternating Current)electric motor by varying the frequency and voltage of the power supplied to it.In the context of water pumps,the motor in question is the one that drives the pump itself.
How Does a VFD Work in a Water Pump System?
To understand the importance of VFD in water pumps,it's helpful to first understand the problem they solve.
The Old Way:Fixed-Speed Pumps
Traditional pump systems operate at a constant,fixed speed–either fully ON or fully OFF.When a certain water pressure is needed,the pump kicks on at 100%power,runs until the demand is met,and then shuts off.This is like driving a car by only using the accelerator pedal fully down or not at all.It's incredibly inefficient,causes significant wear and tear,and leads to large pressure fluctuations.
The VFD Solution:Variable-Speed Control
A VFD acts as a sophisticated throttle for the pump motor.Instead of just cycling on and off,the VFD allows the pump motor to speed up or slow down continuously to match the exact flow or pressure demand in real-time.
Here’s a simplified breakdown of the process:
- Sensor Input:The system uses a pressure transducer or flow meter to constantly monitor the output.
- Signal to VFD:This sensor sends a signal to the VFD controller.
- Intelligent Adjustment:The VFD's microprocessor adjusts the electrical frequency and voltage powering the motor.
- Speed Change:The motor(and therefore the pump)speeds up or slows down to maintain the precise setpoint,whether for constant pressure or specific flow.
Key Benefits of Using a VFD in Water Pump Applications
Integrating a VFD into your water pump system offers a multitude of advantages:
- Massive Energy Savings:This is the most significant benefit.The affinity laws for pumps state that the power consumed is proportional to the cube of the speed.This means that even a small reduction in speed results in enormous energy savings.For example,running a pump at 80%speed uses only about 50%of the power compared to running it at full speed.This can cut your pump's electricity bill dramatically.
- Superior Process Control:VFDs enable precise control over flow and pressure.This is critical in applications like manufacturing processes,HVAC systems,and water treatment plants where maintaining a constant pressure is essential for performance and safety.
- Elimination of Water Hammer:The sudden starting and stopping of fixed-speed pumps creates destructive pressure surges known as water hammer.VFDs provide soft starting and stopping,gradually ramping the pump up to speed and down to a stop,which protects pipes,valves,and fittings from damage.
- Reduced Mechanical Stress and Maintenance:Soft starts drastically reduce the electrical inrush current and mechanical stress on the motor,pump,and bearings.This extends the lifespan of all components and lowers maintenance costs by reducing failures.
- Improved System Reliability:By running pumps at lower speeds most of the time,you decrease heat generation and wear,leading to more reliable operation and fewer unexpected breakdowns.
Common Applications for VFDs in Pumping Systems
You will find VFD in water pumps across a wide range of industries:
- HVAC Systems:In building heating and cooling systems to control circulation pumps and cooling tower fans based on real-time demand.
- Booster Pumps:For maintaining constant water pressure in high-rise buildings municipal water networks,and irrigation systems.
- Wastewater Treatment Plants:For controlling flow rates between various processes like aeration,filtration,and chemical dosing.
- Industrial Processes:For precise transfer and metering of fluids in manufacturing.
- Domestic Well Systems:Modern constant pressure well pumps almost exclusively use VFD technology to provide home water pressure as steady as a city supply.
Conclusion:Is a VFD Right for Your Water Pump?
In summary,a VFD in a water pump system is not just a minor upgrade;it's a fundamental shift towards intelligent,efficient,and reliable fluid control.By enabling variable speed operation,VFDs slash energy consumption,reduce maintenance costs,protect infrastructure,and provide superior process control.
Whether you're looking to lower operational expenses,meet sustainability goals,or simply have more control over your water systems,retrofitting an existing pump with a VFD or specifying a new variable speed pump system is an investment that pays for itself many times over.
Ready to explore how a VFD can optimize your water pump system?Contact a qualified pump systems integrator today for an energy audit and detailed analysis of your specific application.
